- Length
- Width
- 3050mm
- 2400mm
- 1220mm
- 1220mm

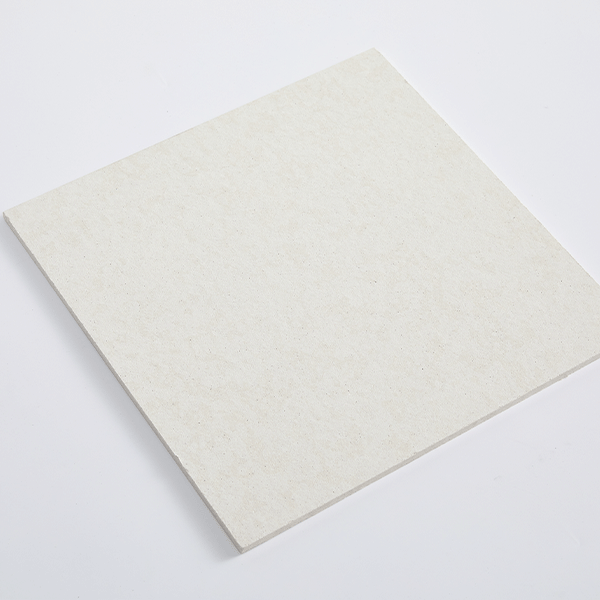

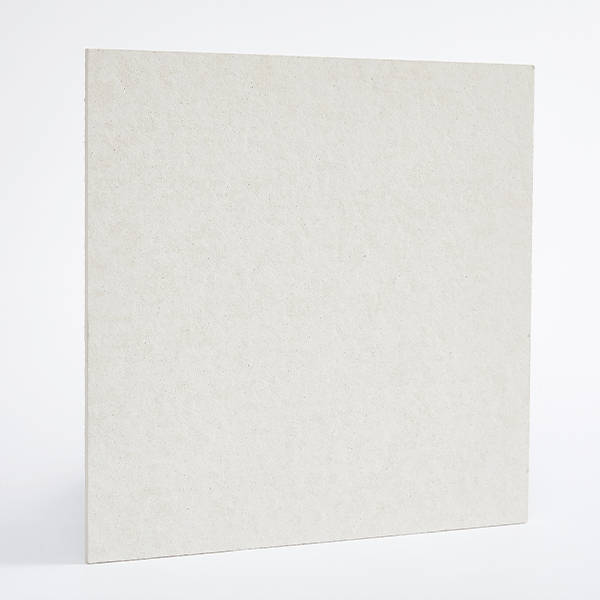

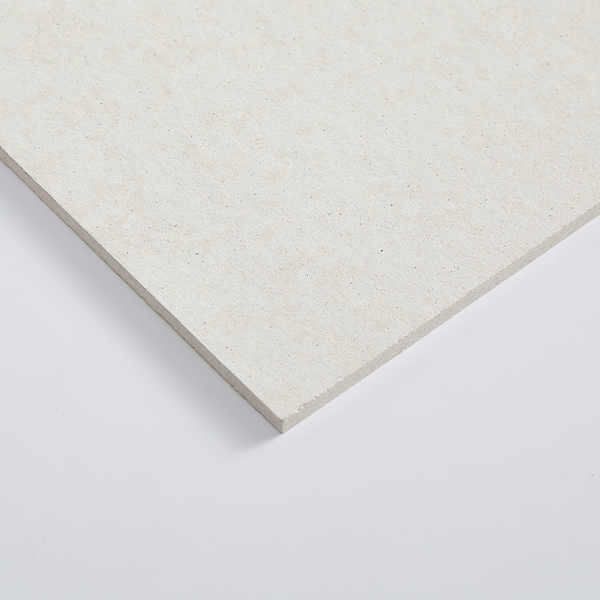

Starpan
Starpan is fire rated medium density fiber cement board for indoor partition and ceiling in civil construction.
Size
Thickness
8mm , 9mm , 10mm , 12mm , 15mm , 24mm , 27.5mm
Please contact us for other dimensions.
Application

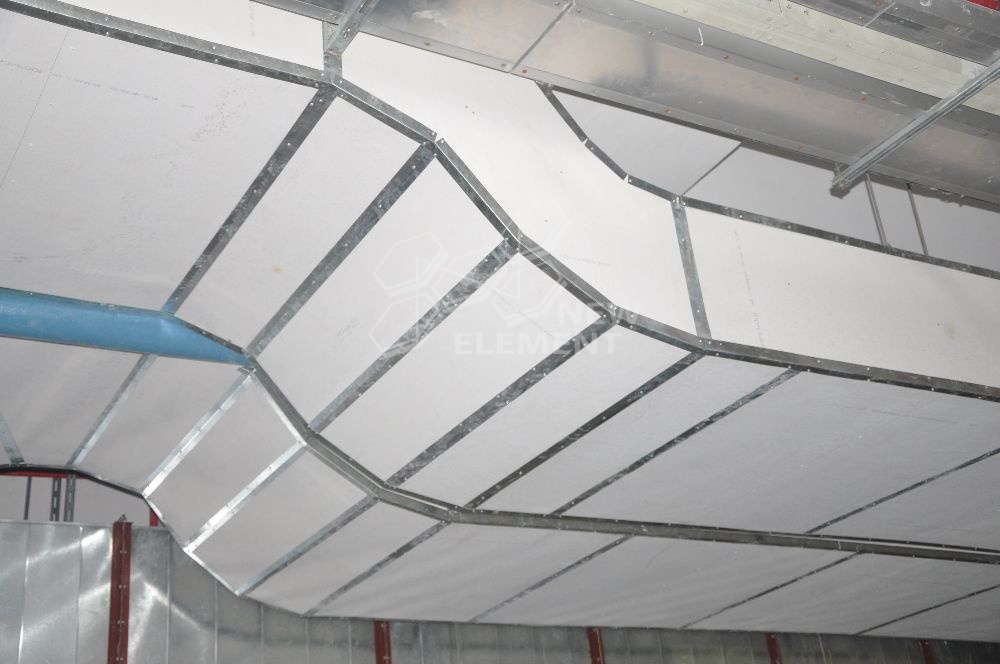

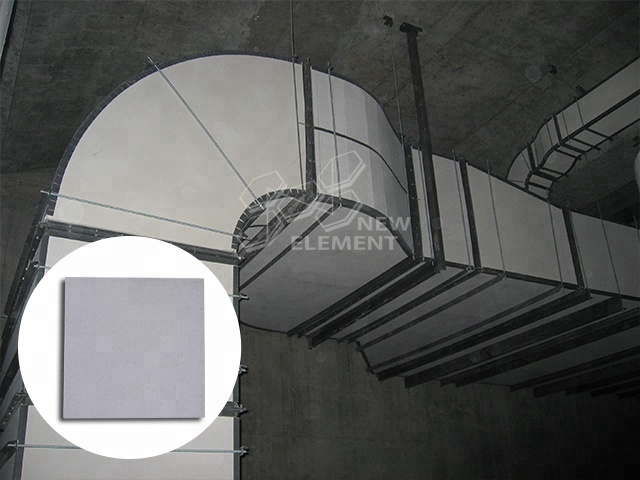

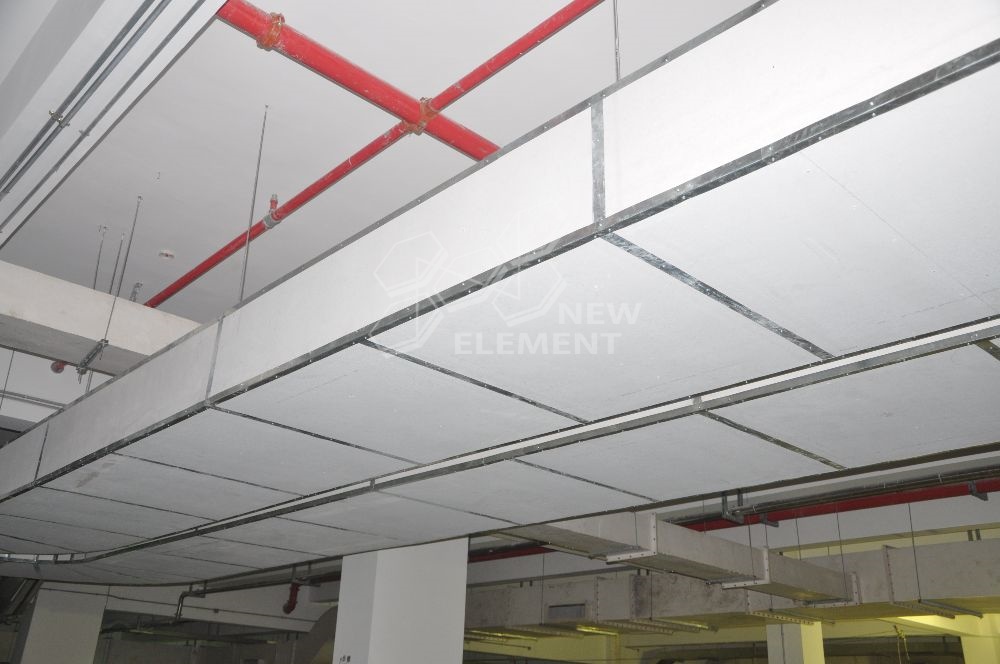

- Indoor partition and ceiling for civil and industrial building
- Fire wall with sound insulation
Physical Properties
| Item | Index |
| Density | 1.05-1.20g/cm³ |
| Bending Strength (Oven Dry) | ≥10 Mpa |
| Moisture Movement | ≤0.25 % |
| Moisture content | ≤10 % |
| Thermal Conductivity | ≤0.20 W/(m·k) |
| Non-combustibility | AS 1530 BS 476 |
| Thermal shrinkage（600℃,3h） | ≤0.95 % |
| Radioactivity | lra < 1.0 ; Ir<1.0 |
| Asbestos Content | 100% Asbestos free |
Benefits
-
Fireproof
New Element’s calcium silicate and fiber cement boards are fireproof, offering superior protection against fire hazards. Made from non-combustible materials, these boards prevent the spread of fire, ensuring safety and compliance with fire safety regulations. Ideal for both residential and commercial applications, they provide reliable fire resistance and help safeguard structures in high-risk areas.
-
High temperature resistance
New Element’s calcium silicate and fiber cement boards have high temperature resistance, making them suitable for environments exposed to extreme heat. These boards maintain their integrity and performance even at elevated temperatures, providing reliable protection in industrial settings, fire-prone areas, or any application requiring heat resistance. Their high temperature tolerance ensures durability and safety in challenging conditions.
-
Thermal insulated
New Element’s calcium silicate and fiber cement boards are thermal insulated, offering excellent heat resistance and energy efficiency. These boards help maintain comfortable indoor temperatures by reducing heat transfer, making them ideal for both hot and cold climates. Their thermal insulating properties contribute to energy savings, improving overall building performance and reducing the need for additional heating or cooling systems.
-
Moisture proof and mothproof
New Element’s calcium silicate and fiber cement boards are moisture-proof and mothproof, ensuring long-lasting durability in environments exposed to humidity or pest threats. These boards resist moisture absorption, preventing mold growth and structural damage. Additionally, their mothproof properties protect against infestations, making them an ideal choice for a variety of applications, especially in areas like kitchens, bathrooms, and outdoor settings.
-
Low thermal conductivity
New Element’s calcium silicate and fiber cement boards have low thermal conductivity, providing excellent insulation properties. This helps to reduce heat transfer, keeping interiors cooler in hot weather and warmer in cold weather. Their low thermal conductivity enhances energy efficiency by minimizing the need for additional heating or cooling, making them a cost-effective and environmentally friendly choice for construction projects.
Custom Made Products
Easy To Cut And Install
Light weight and fit in any position
Green Sustainable Material
100% Non-Asbestos, Would not release toxic gas
