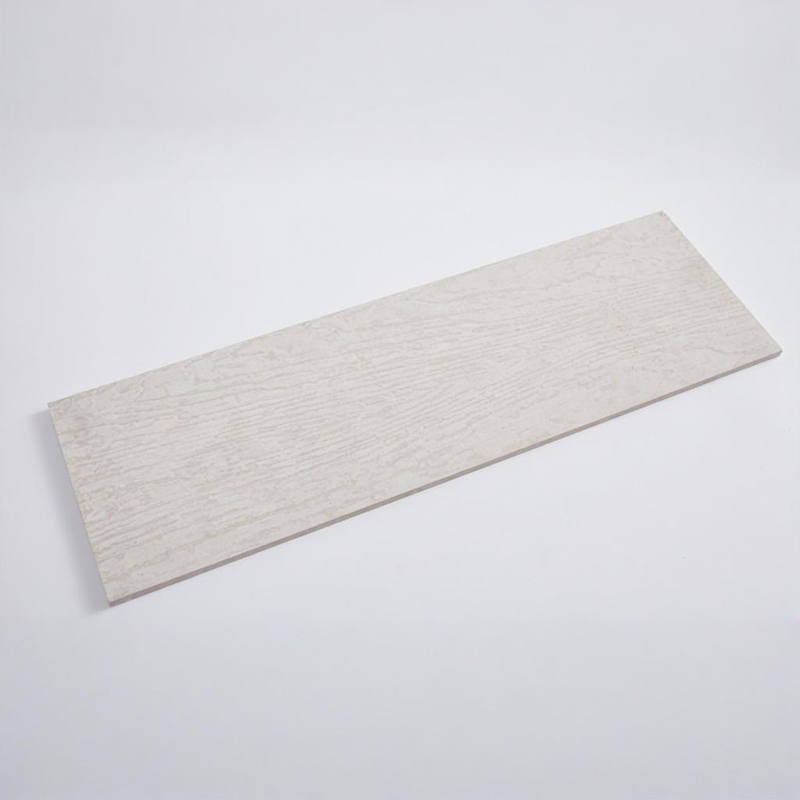

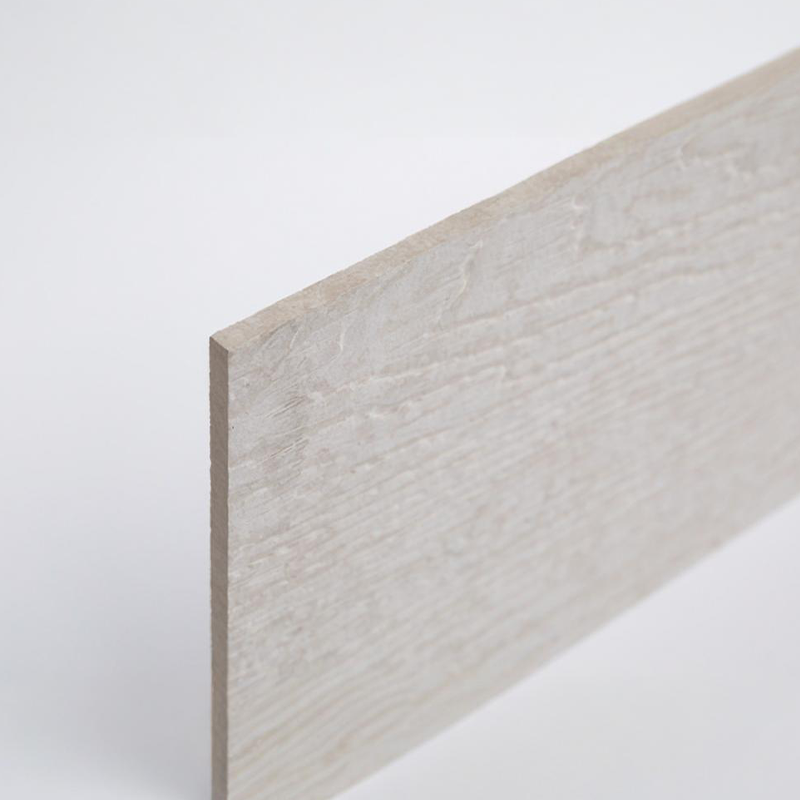

Siding Plank

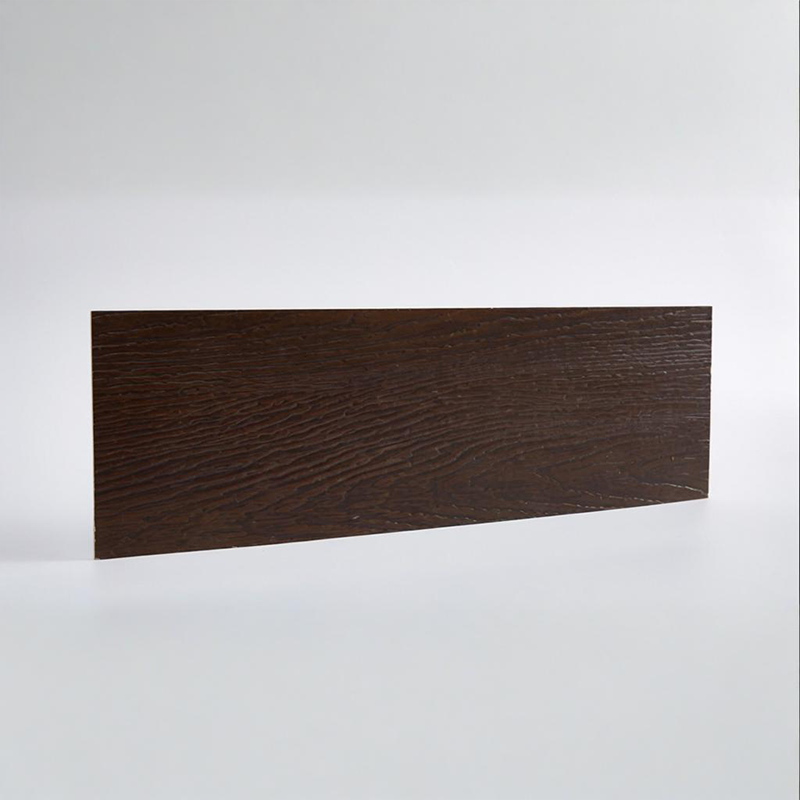

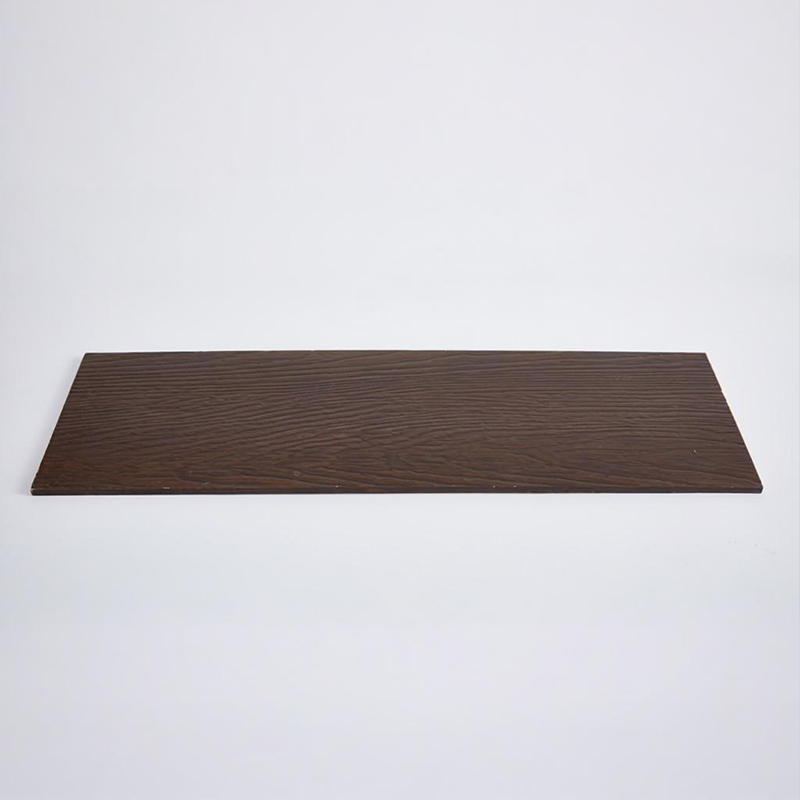

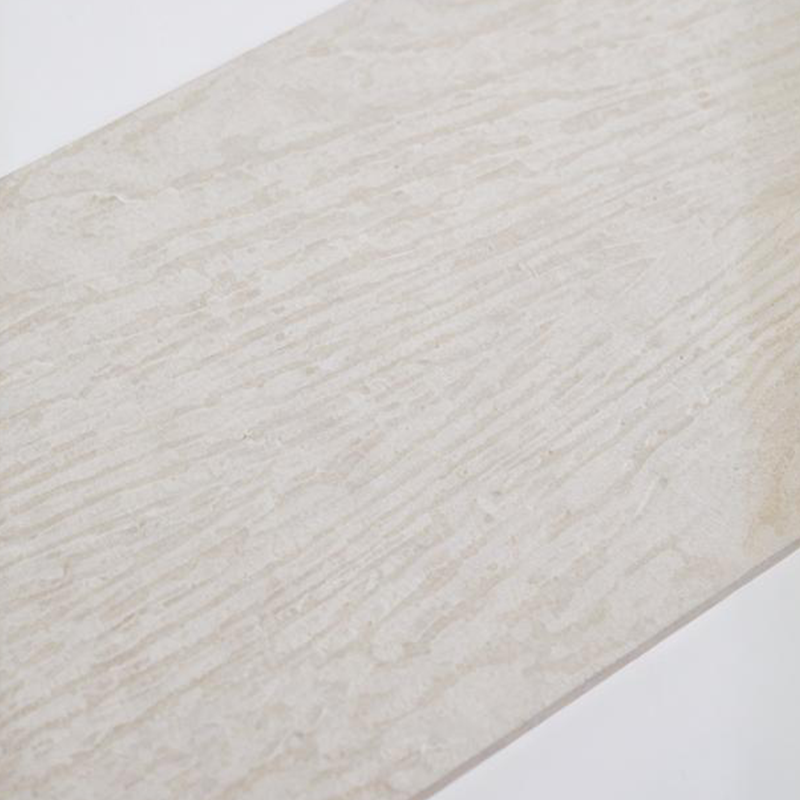

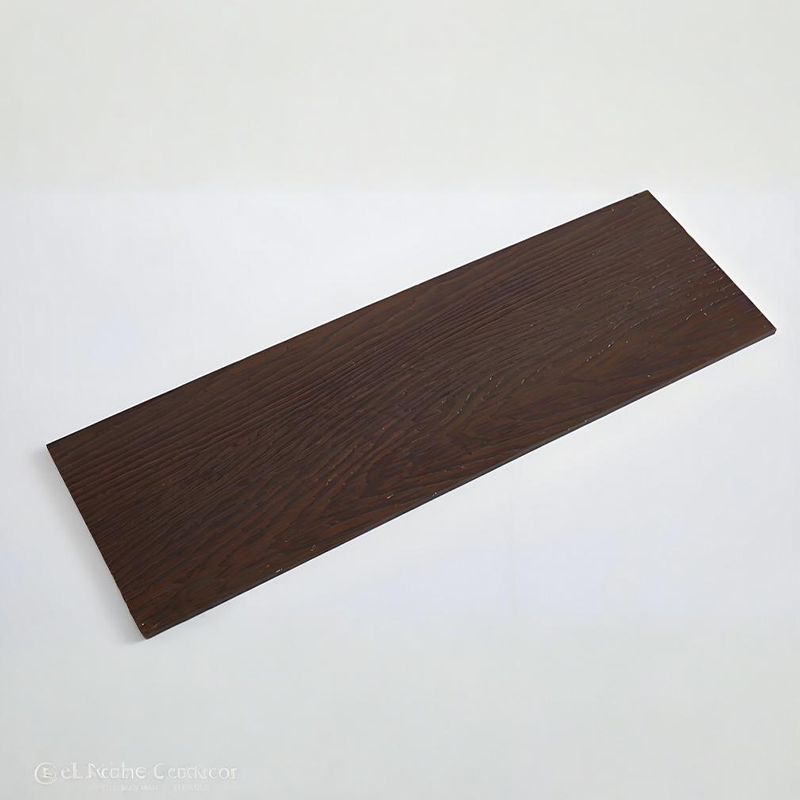

Siding plank, is also known as weatherboard. It is a fiber cement board with a unique cedar wood grain pattern.

Size

Length
Width

3050mm
192mm

3050mm
241mm

Thickness

7.5mm , 9mm

Please contact us for other dimensions.

Board Texture

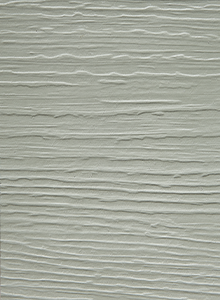

Monochrome

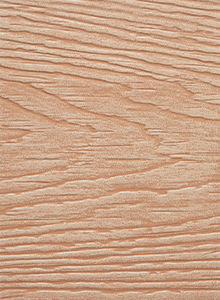

Two-tone

Color

Application

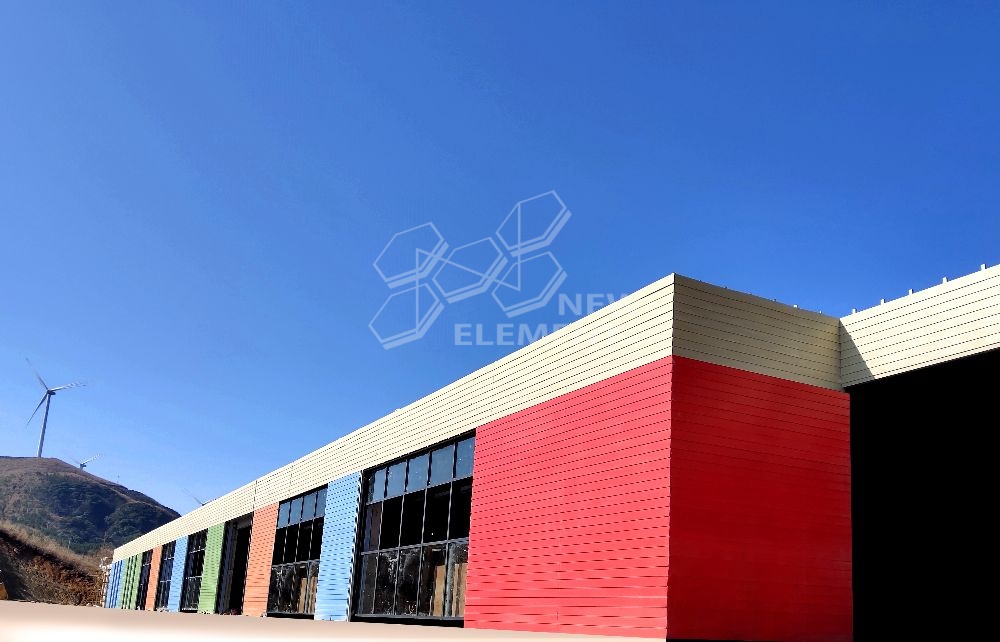

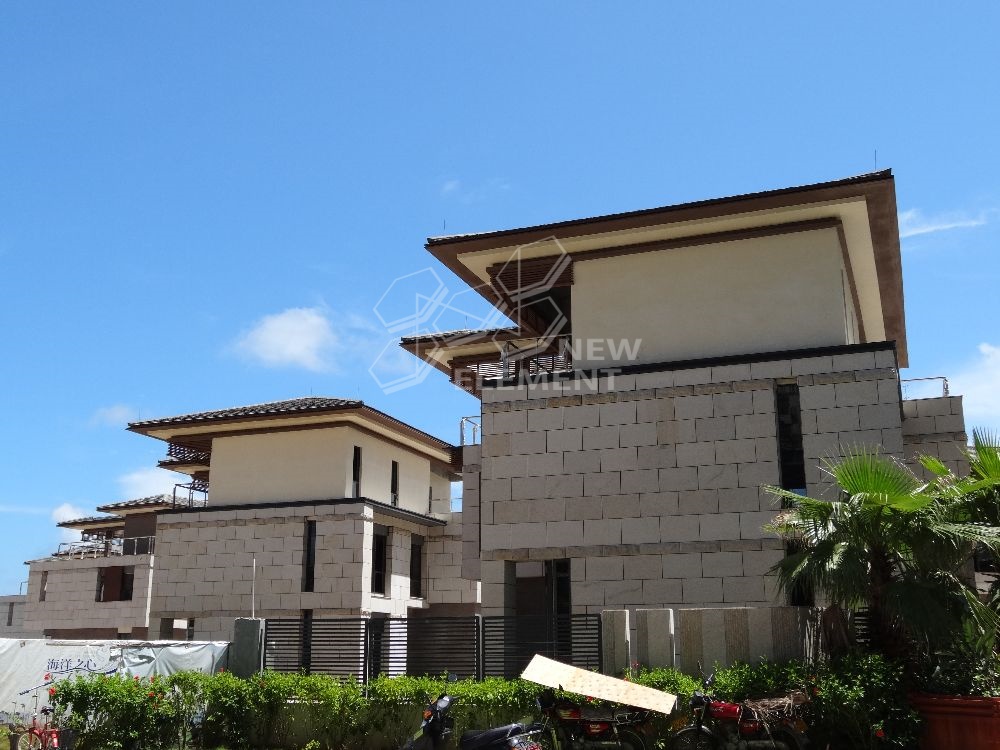

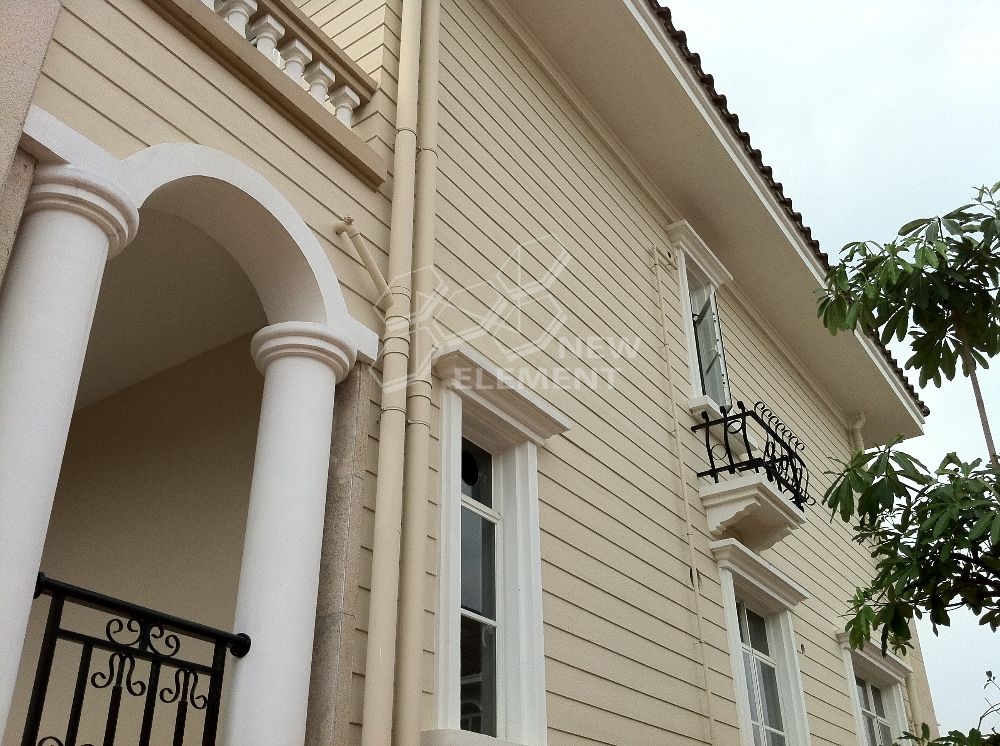

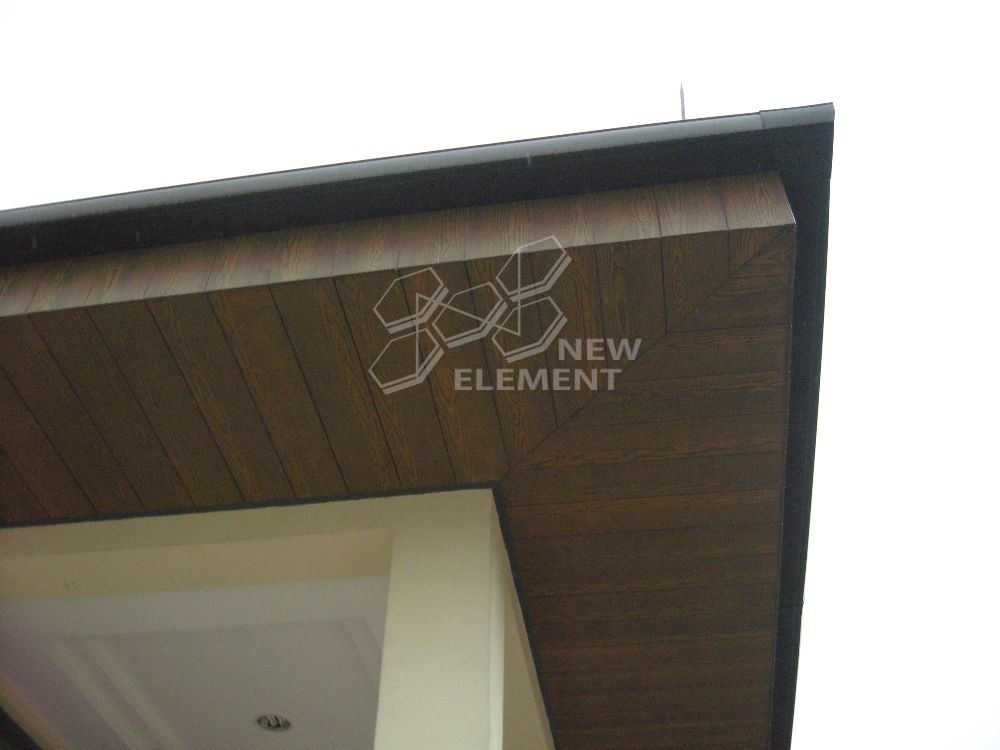

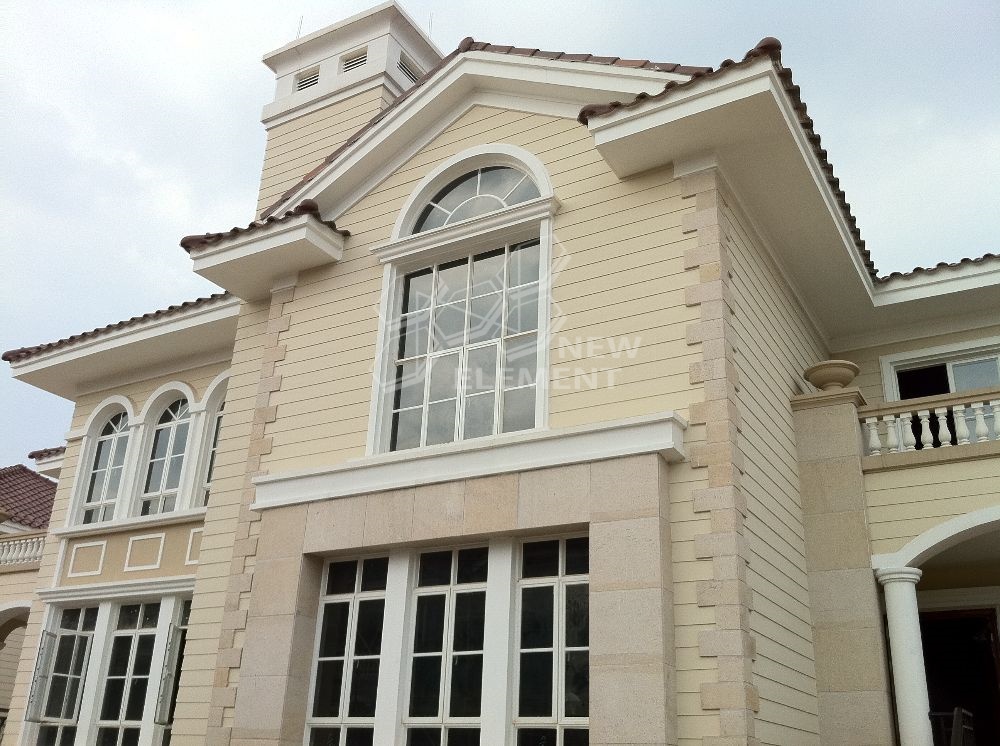

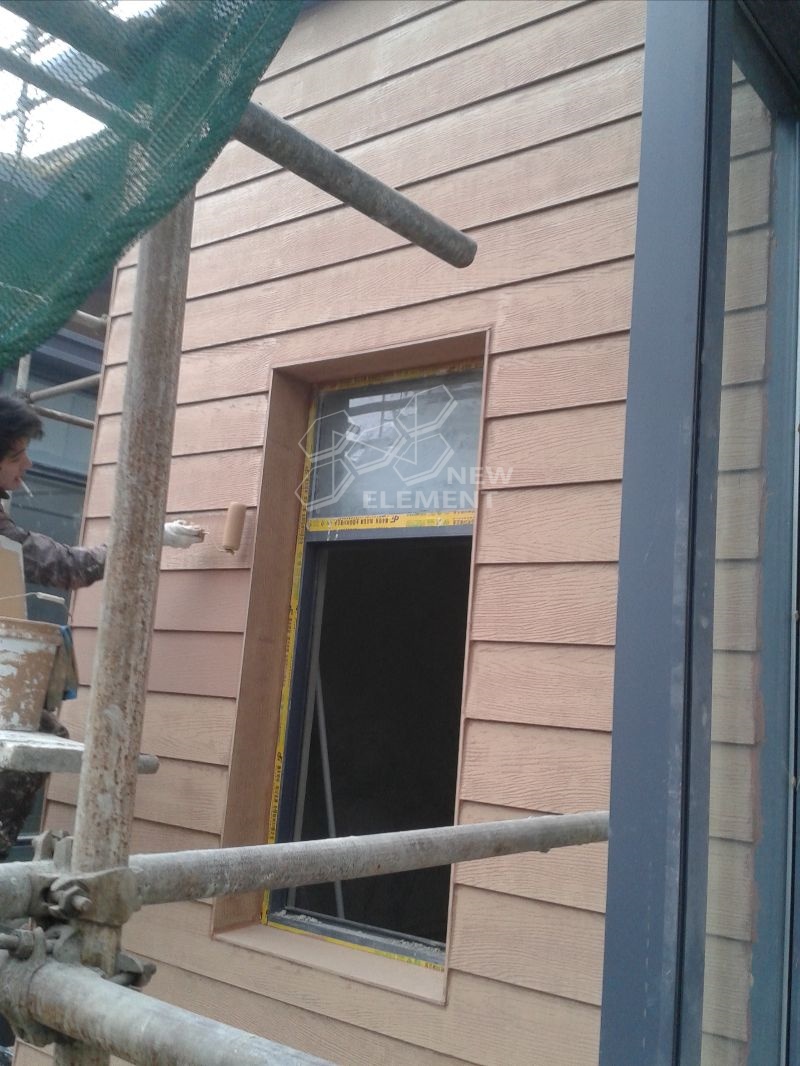

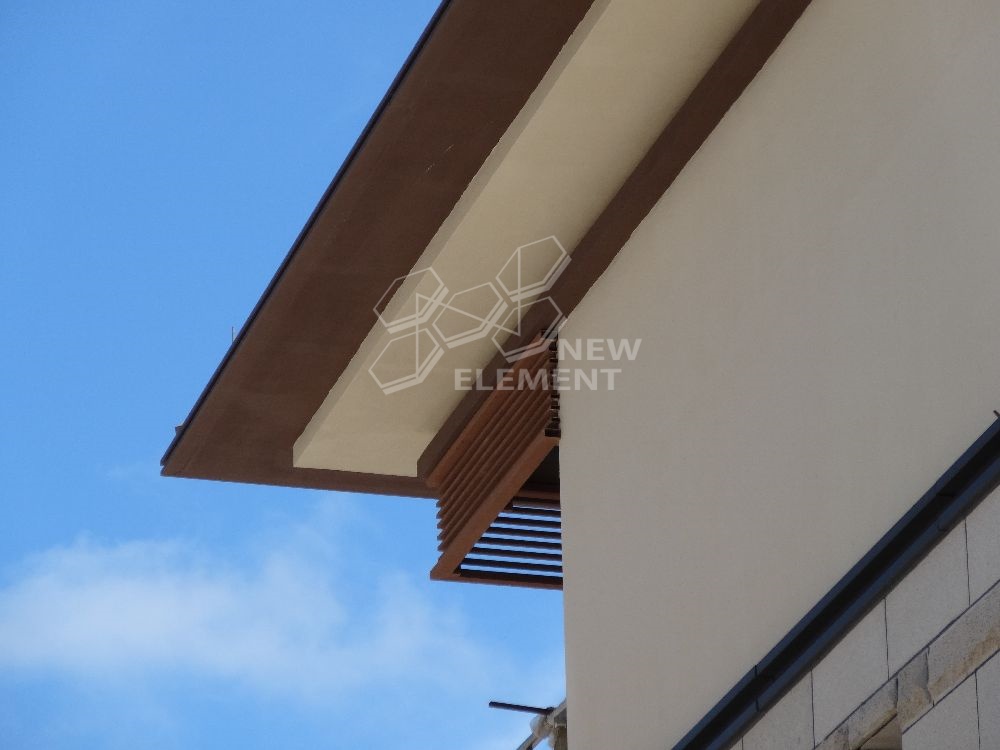

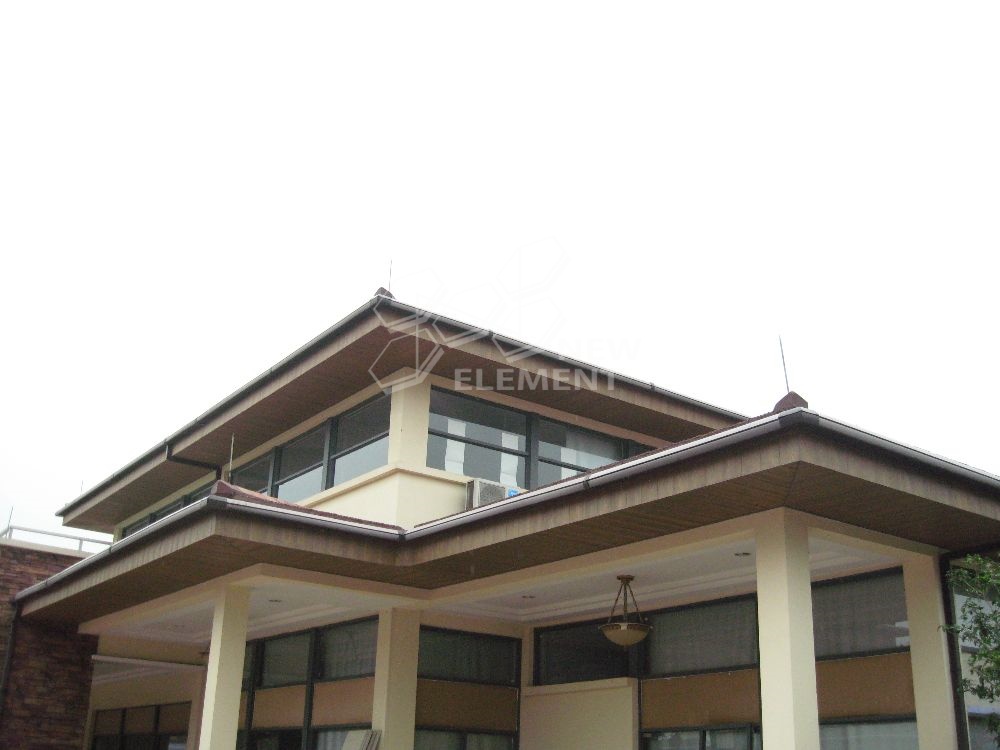

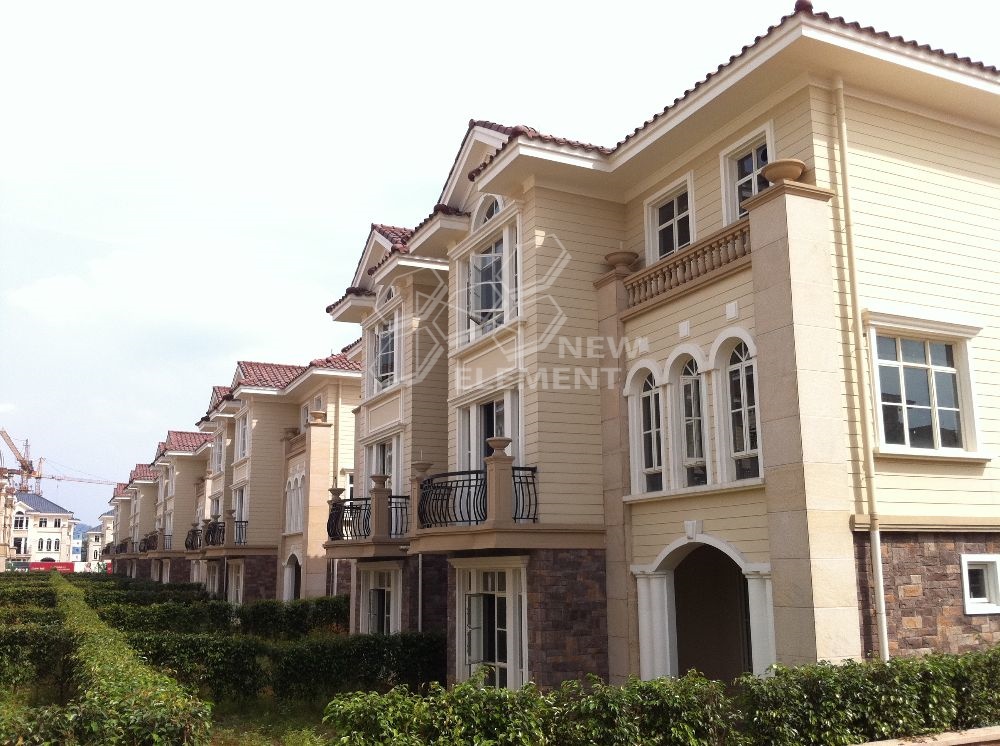

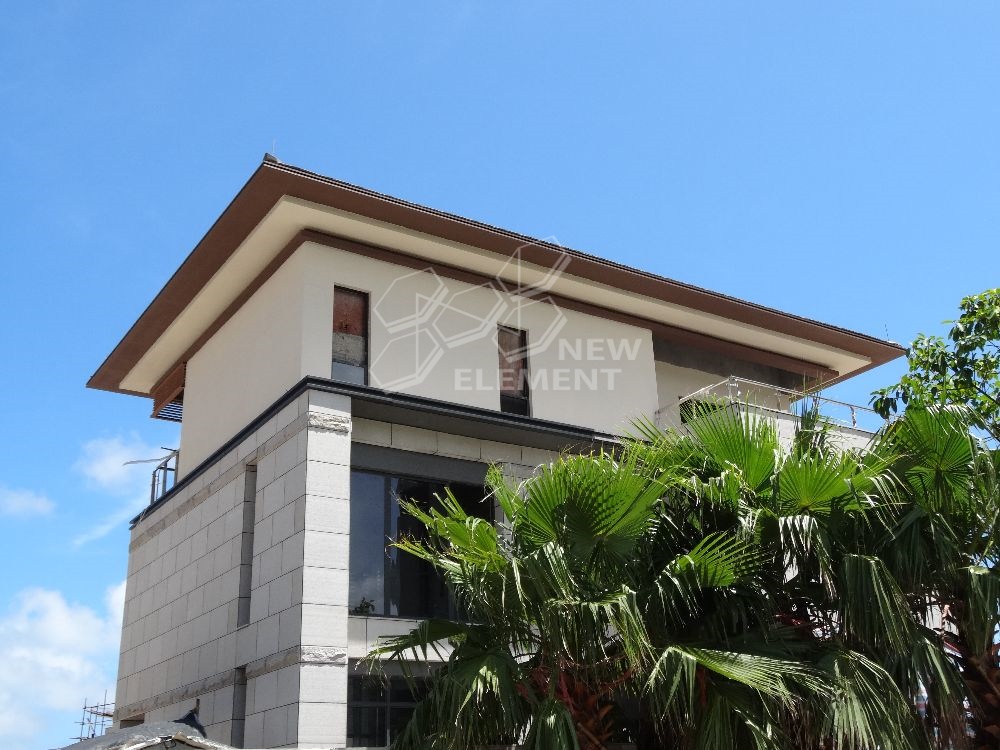

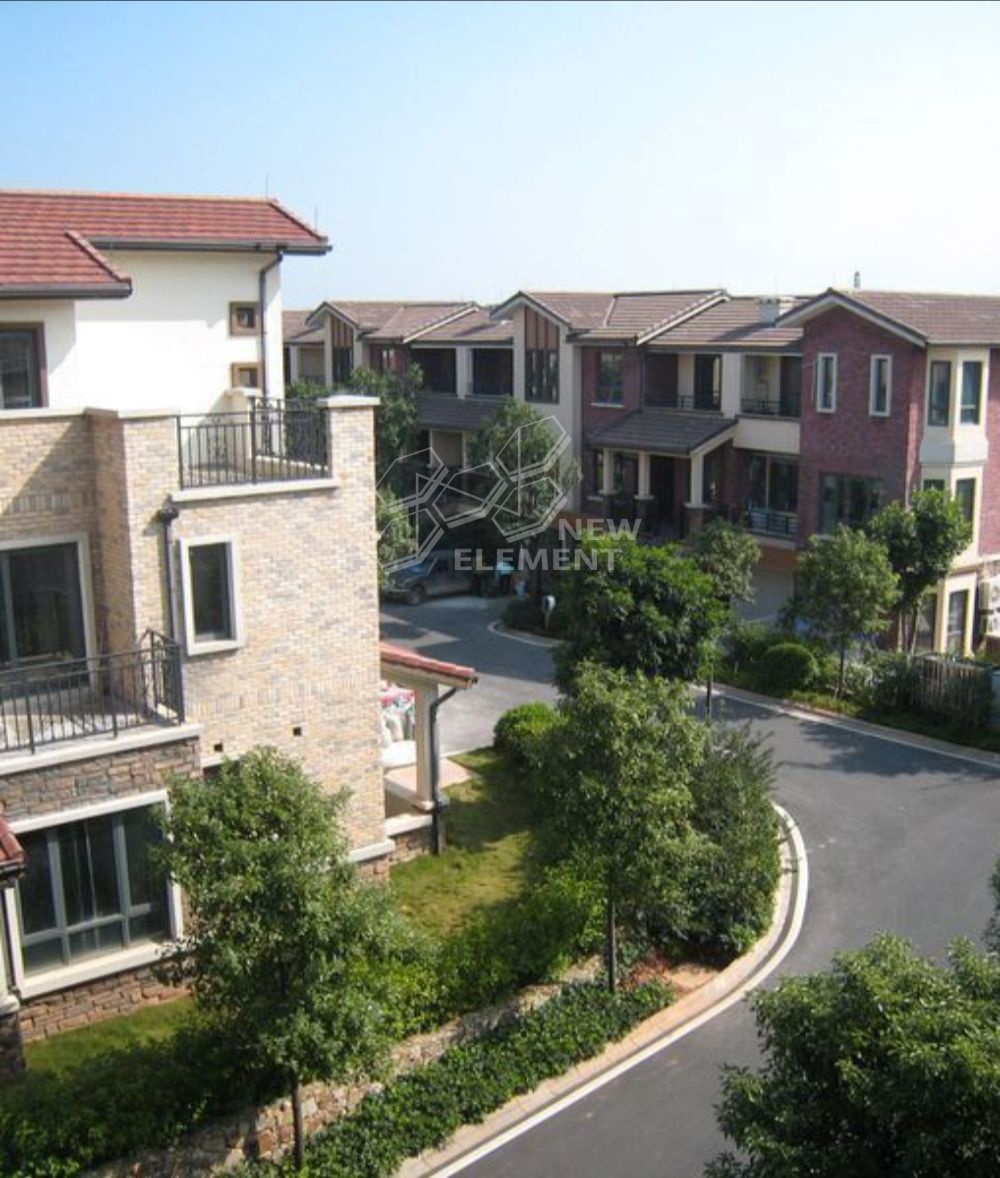

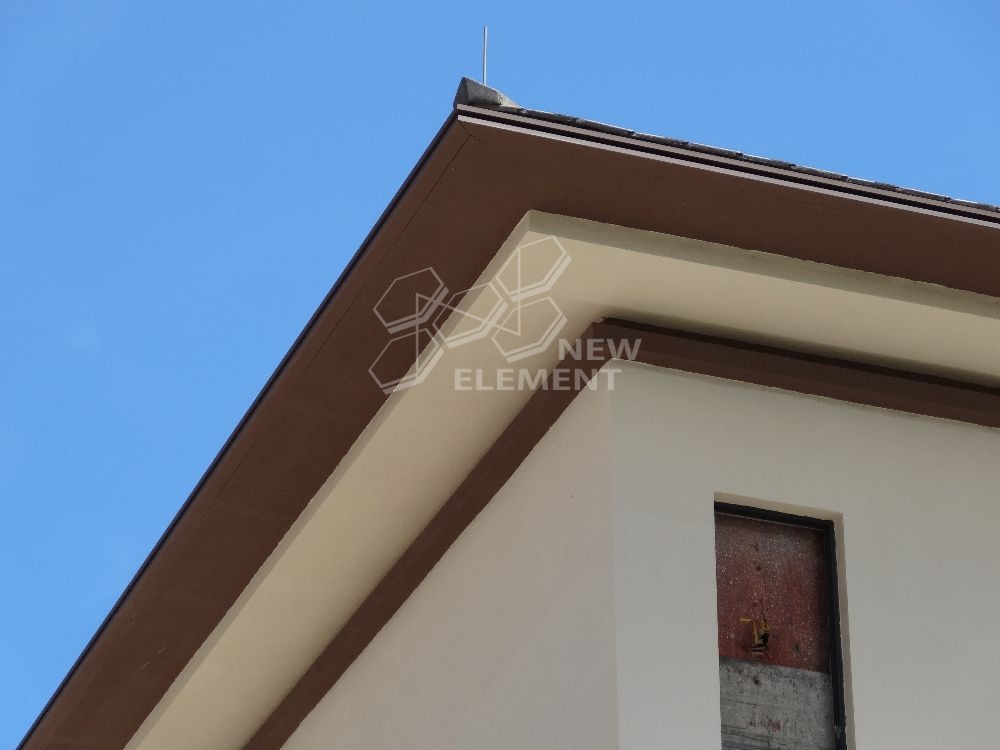

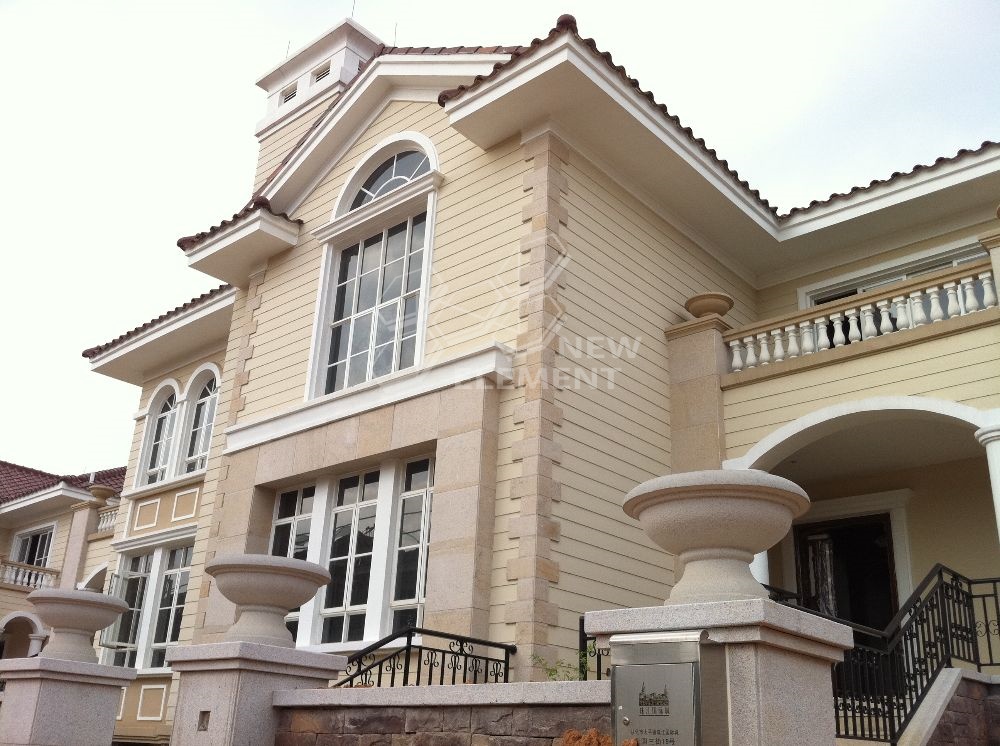

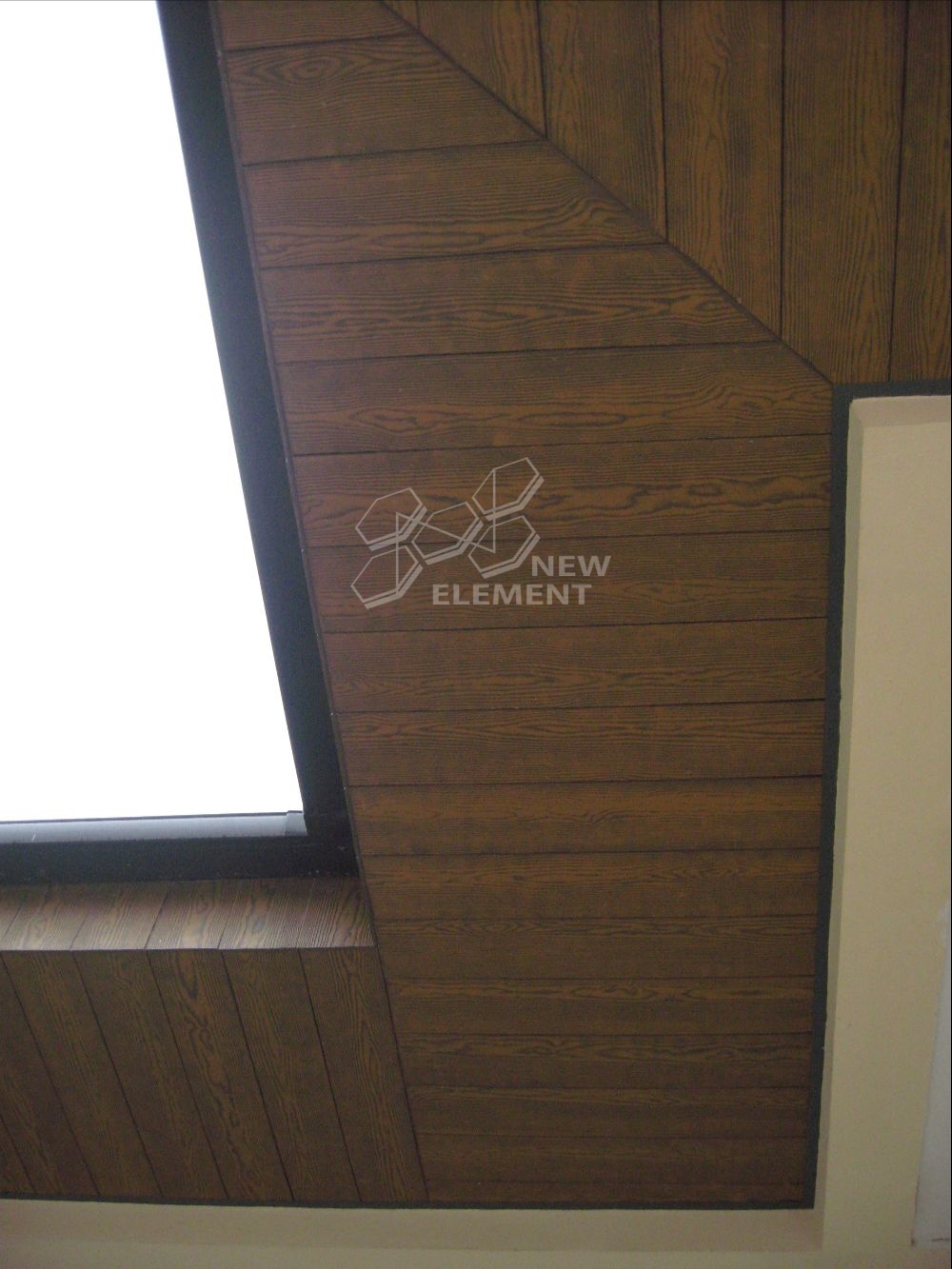

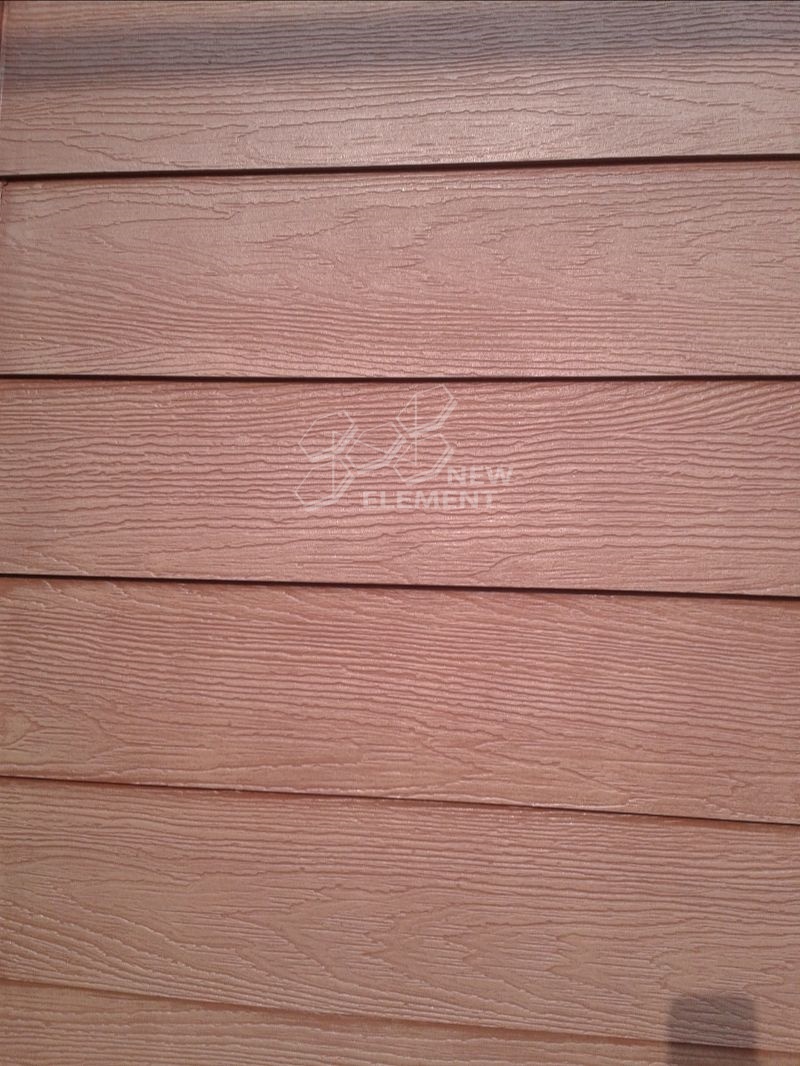

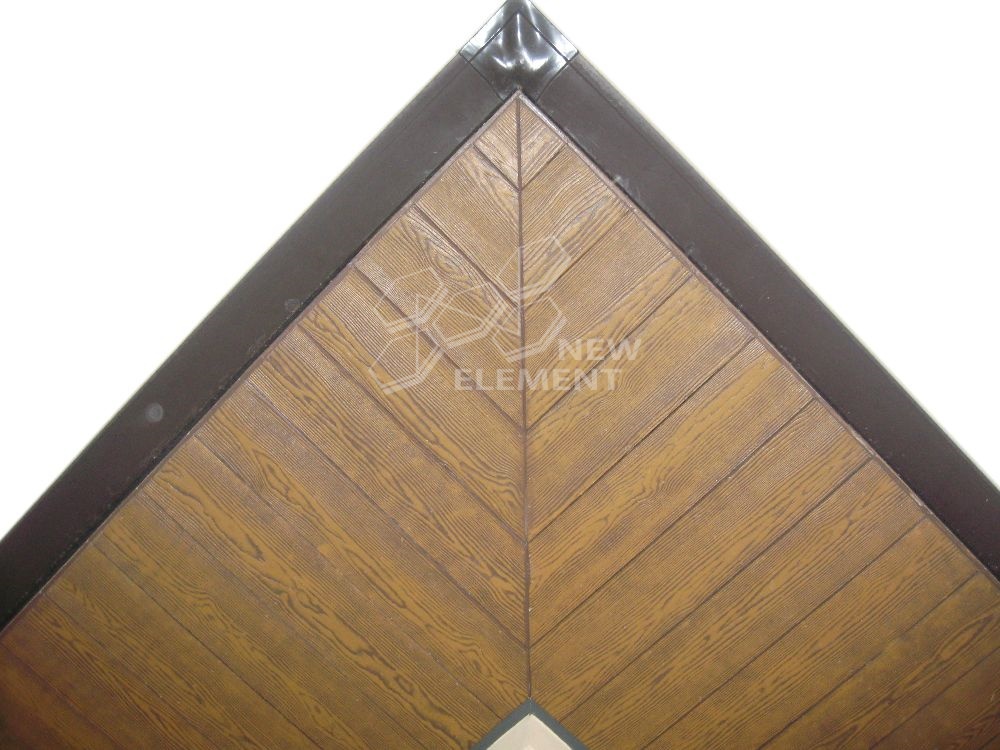

Cladding in low-rise building, especially American country design.

An excellent cladding material in architectural design.

Architecture with specific aesthetic needs.

Decorative effect of buildings and enhance the strong sense of line and the layer of the exterior wall.

Physical Properties

Item	Index
Density	≥1.25 g/cm³
Bending Strength (Water Saturated)	≥12 Mpa
Bending Strength（Oven Dry）	≥16 Mpa
Water Absorption (Fiber Cement Color)	≤38 %
Moisture Movement	≤0.25 %
Thermal Conductivity	≤0.30 W/(m·k)
Water lmpermeability	Pass
Non-combustibility	ASTM C1186
Freeze-thaw Cycles	Pass
Heat Rain Resistance	Pass
Warm Water	Pass
Soak -dry	Pass
Water Tightness	Pass
Radioactivity	lra < 1.0 ; Ir<1.0
Asbestos Content	100% Asbestos free

Benefits

Low expansion and shrinkage

New Element’s calcium silicate and fiber cement boards feature low expansion and shrinkage, ensuring stability and preventing structural distortions from temperature changes. Ideal for applications such as cladding, fire protection, and partition walls, our boards maintain strength and form over time. With over 30 patents and a focus on sustainability, New Element provides reliable, high-performance solutions for demanding environments, offering long-term durability for construction projects.
Fire resistance

These boards are non-combustible and can withstand high temperatures, making them an ideal choice for fire protection in walls, ceilings, and floors. Their fire-resistant properties help prevent the spread of flames, offering valuable protection for both residential and commercial buildings. With their ability to meet stringent fire safety standards, these boards ensure a higher level of security and durability in fire-sensitive environments.
Moisture resistance

Their moisture-resistant properties help prevent warping, swelling, and degradation, ensuring long-lasting performance in applications such as exterior cladding, suspended ceilings, and bathrooms. These boards maintain structural integrity and aesthetic appeal, even in challenging conditions, providing reliable protection against moisture-related issues.
Weather resistance

New Element's calcium silicate and fiber cement boards are designed to withstand harsh weather conditions, offering exceptional durability in both extreme heat and cold. These boards resist damage from UV rays, rain, wind, and temperature fluctuations, ensuring long-term performance without degradation. Their weather-resistant properties make them perfect for exterior applications such as cladding and roofing, maintaining both structural integrity and aesthetic appearance over time.
Thermal insulated

New Element’s calcium silicate and fiber cement boards offer exceptional thermal insulation properties, effectively reducing heat transfer. This helps maintain a comfortable indoor temperature by keeping spaces cool in summer and warm in winter. Ideal for walls, ceilings, and floors, these boards enhance energy efficiency, reducing heating and cooling costs. Their thermal insulation capabilities make them a reliable and eco-friendly choice for projects aiming to improve comfort and energy performance.
Anti-termite

Because its primary components – cement, sand, and cellulose fibers – are not a food source for termites. This composition makes the boards inedible and resistant to pest infestation, contributing to the longevity and durability of buildings where they are used.
