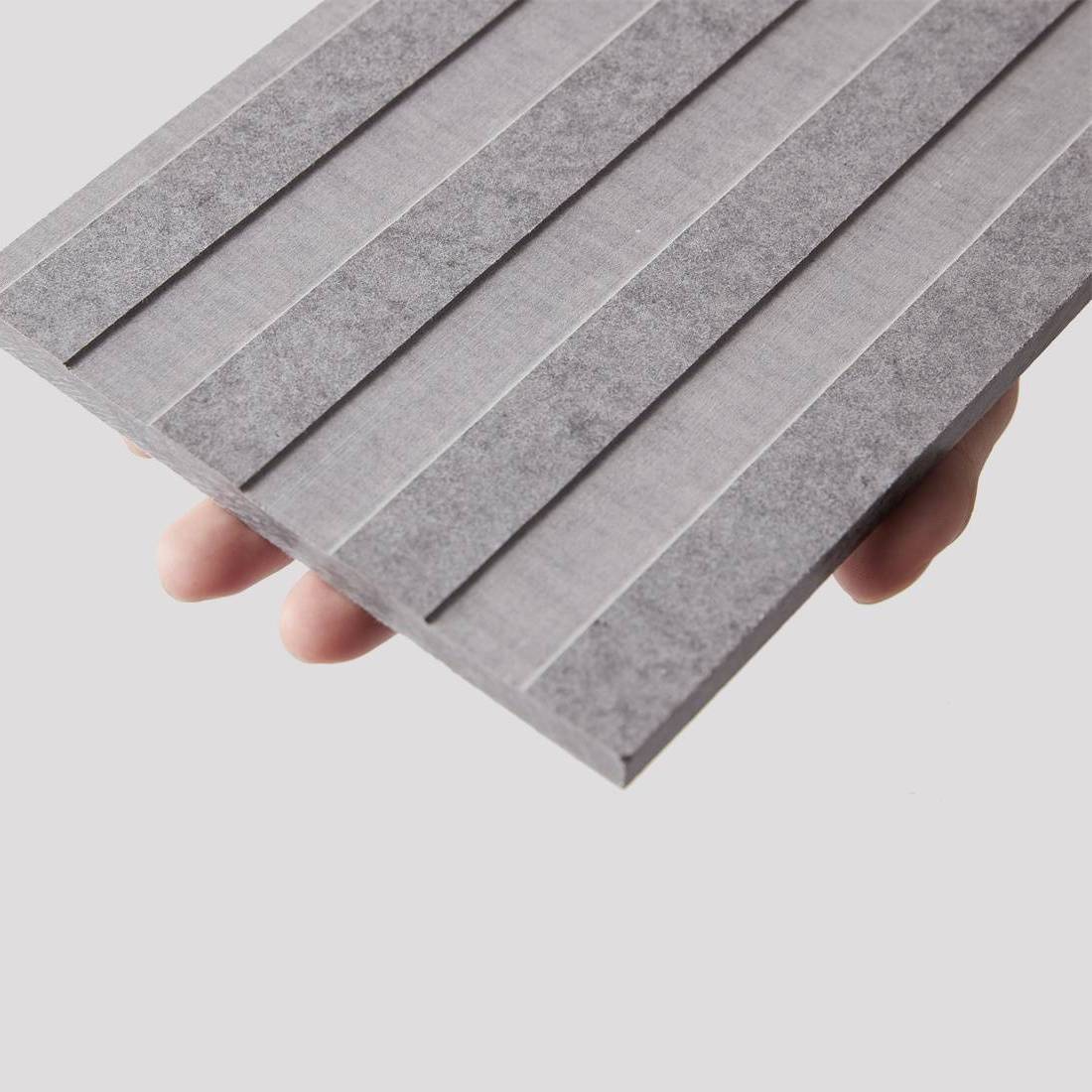

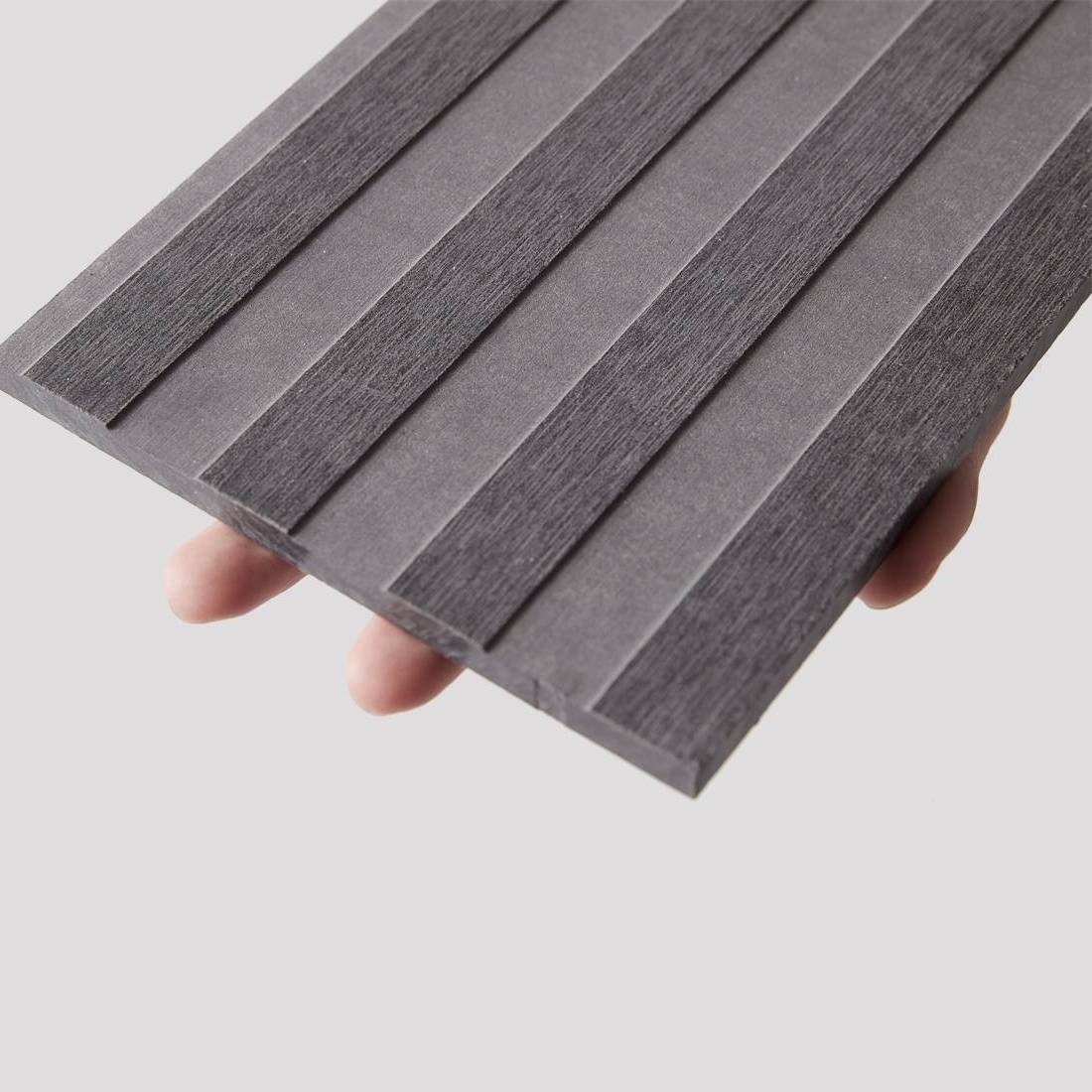

This fiber cement partition board is a unique 3D shaped, through-colored facade material that plays with light and shadow. Grooving design of the fiber cement board facade displays a texture that highlights the raw inner texture of the core fiber cement material. Every moment of the day, the changing angle of the daylight gives the facade material a different aspect, and achieve a particular design aesthetic.
INQUIRYSpecification
|
Thickness |
Width |
Length |
|
6,8,9,12,15mm |
1220mm |
2440,3050mm |
|
REMARK: We can also supply other specification as the client’s specially requirement |
||
|
Item（The following data are the average tested figures during manufacturing） |
Index |
Unit |
|||
|
Density |
≥1.40 |
g/cm3 |
|||
|
Thermal Conductivity |
≤0.35 |
W/(m·k) |
|||
|
Water Absorption |
≤28 |
% |
|||
|
Water Contain |
≤10 |
% |
|||
|
Moisture Movement |
≤0.25 |
% |
|||
|
Freezing |
No cracking or delaminating after 50 times of freeze-thaw cycles |
||||
|
Non-water soaking |
No Water Forms after being tested for 24 hours |
||||
|
Non-combustibility |
ČSN EN ISO 1182 Reaction to fire Classification: Class A1 |
/ |
|||
|
Bending Strength |
Oven dry |
Cross |
≥20.0 |
Mpa |
|
|
Parallel |
≥15.0 |
Mpa |
|||
|
Saturated |
Cross |
≥15.0 |
Mpa |
||
|
Parallel |
≥10.0 |
Mpa |
|||
|
Screwing withdraw |
≥110 |
N/mm |
|||
|
Impact resistance |
Oven dry |
No Continuous Cracking After An Impact |
/ |
||
|
noncombustibility |
A |
the highest grade |
|||
|
REMARK: Please contact our technical department if you need more technical index. |
|||||
Applications:
Cladding and facade of various high-class and high rise civil buildings, especially for the building located at the seaside.
Curtain wall and facade
Base board
Packing Detail:
Wooden Pallet
Waterproof Plastic Bag + Packing tape

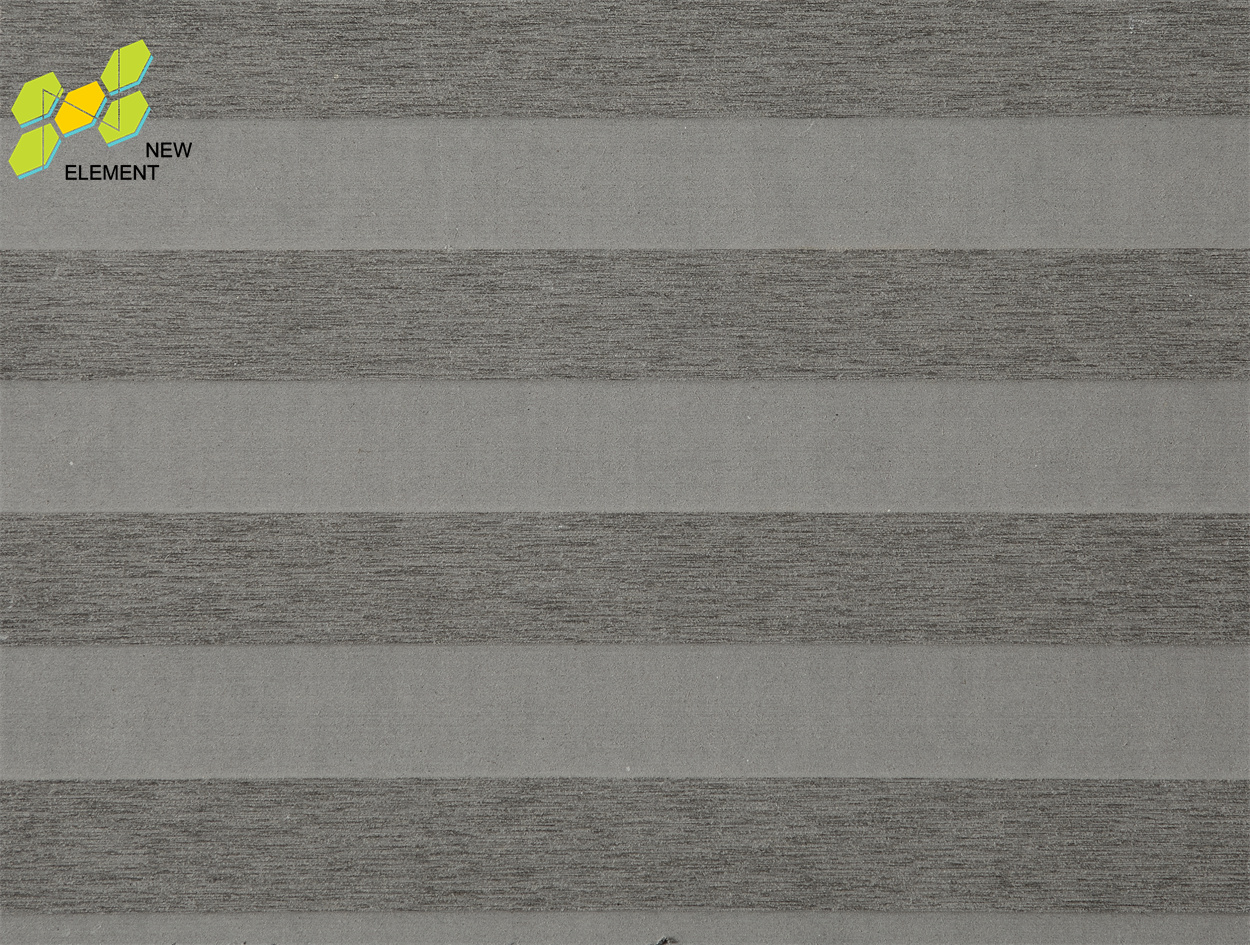

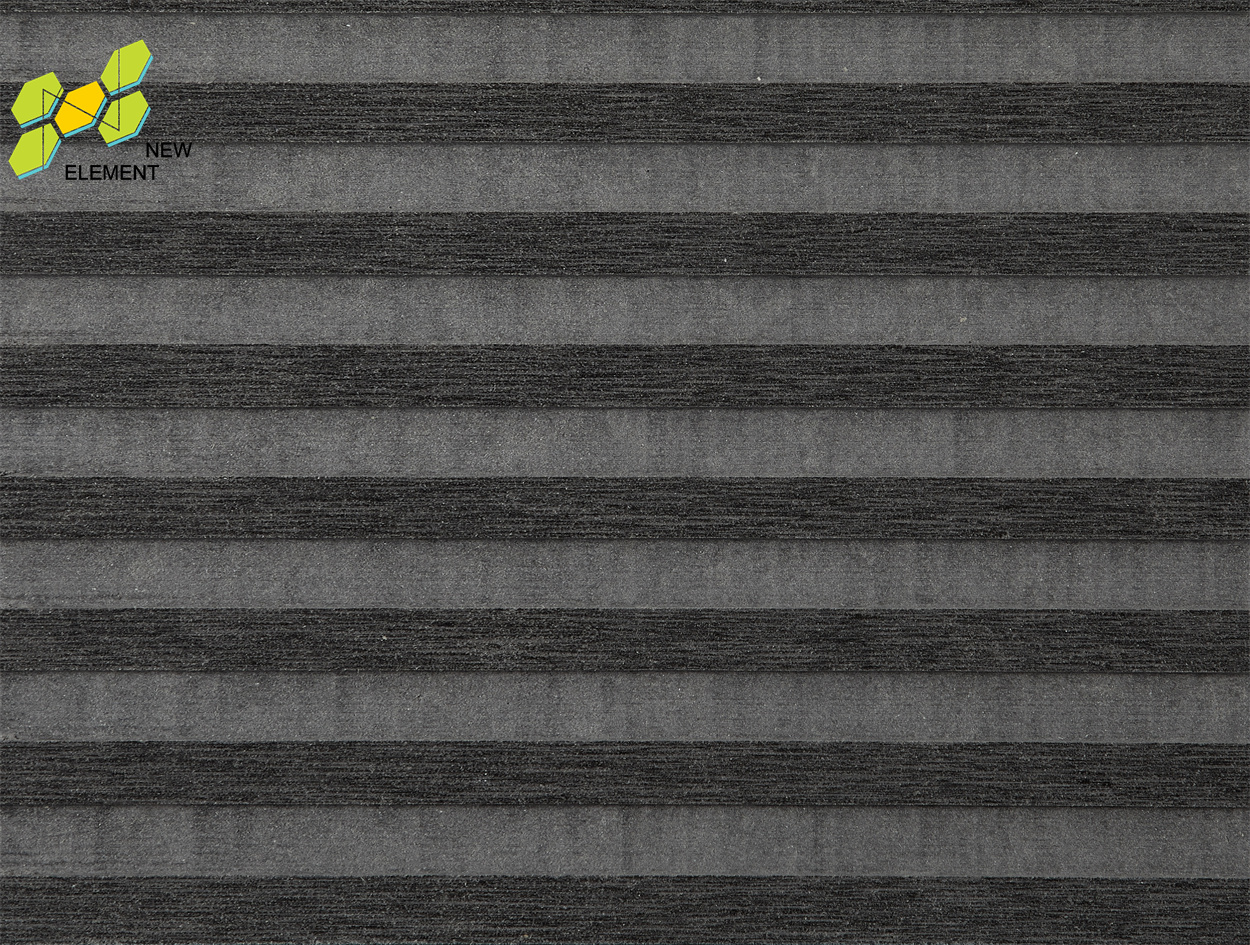

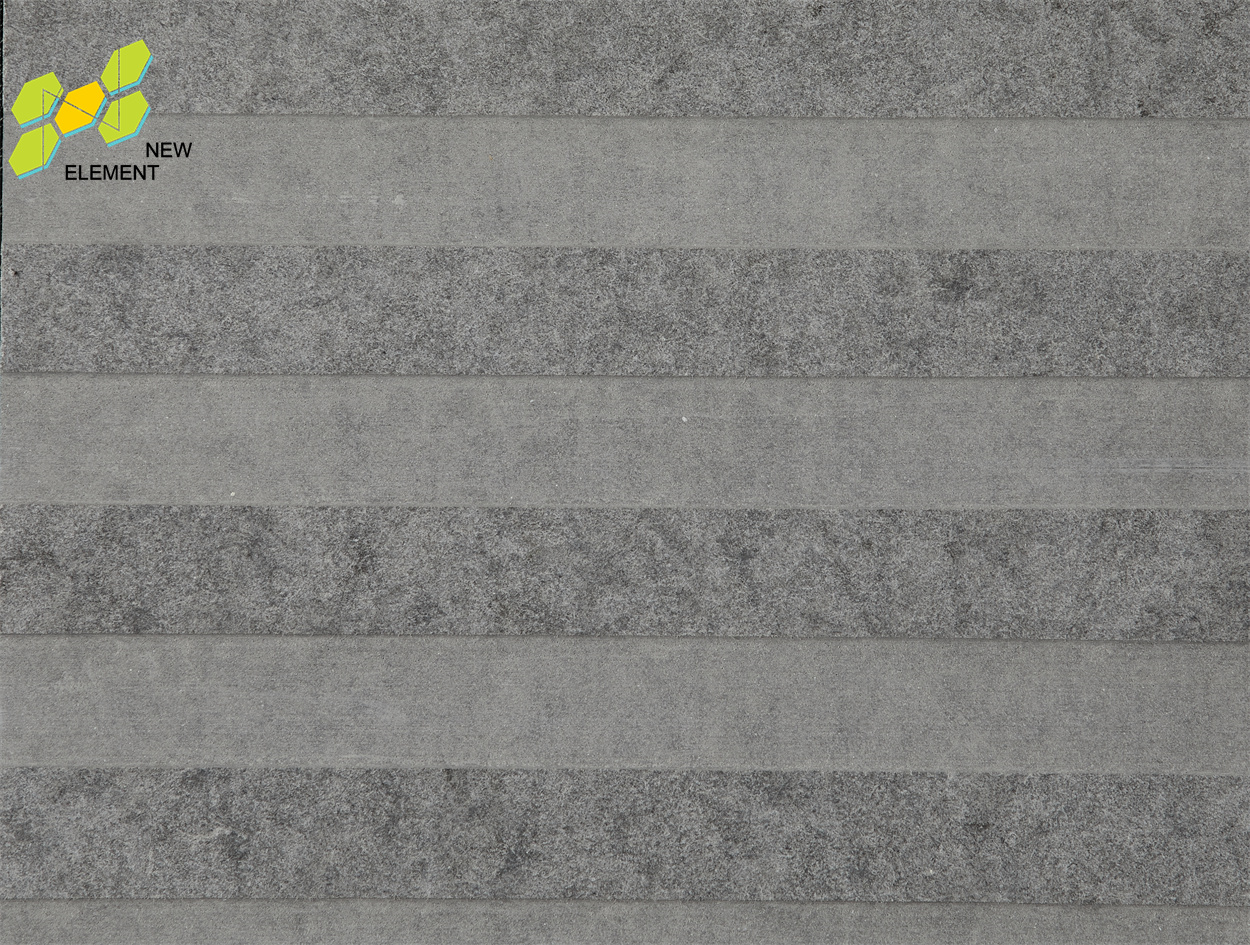

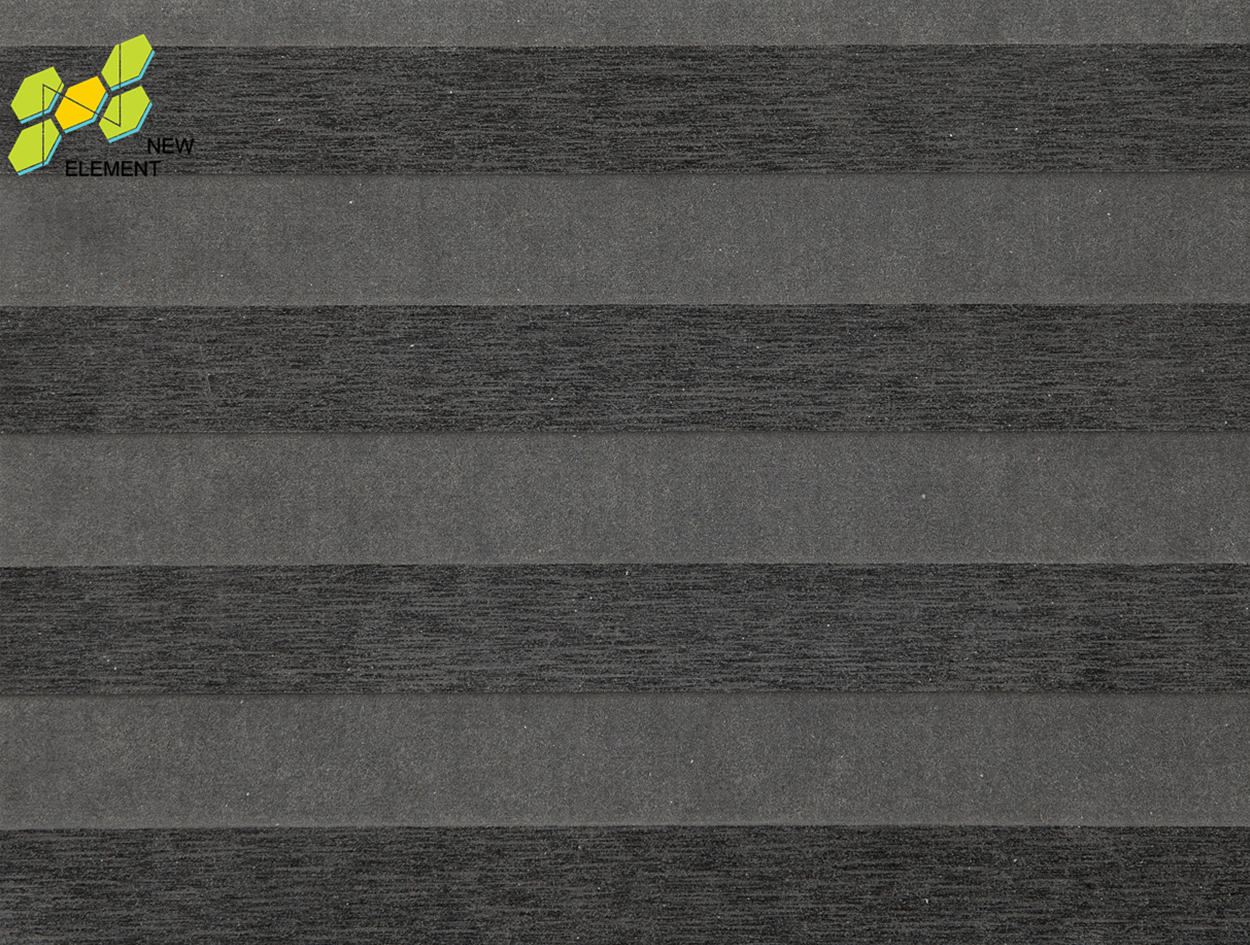

Choose Your Favorite Colors
The boards are through-colored, so scratches or damages would not influence their appearance.
