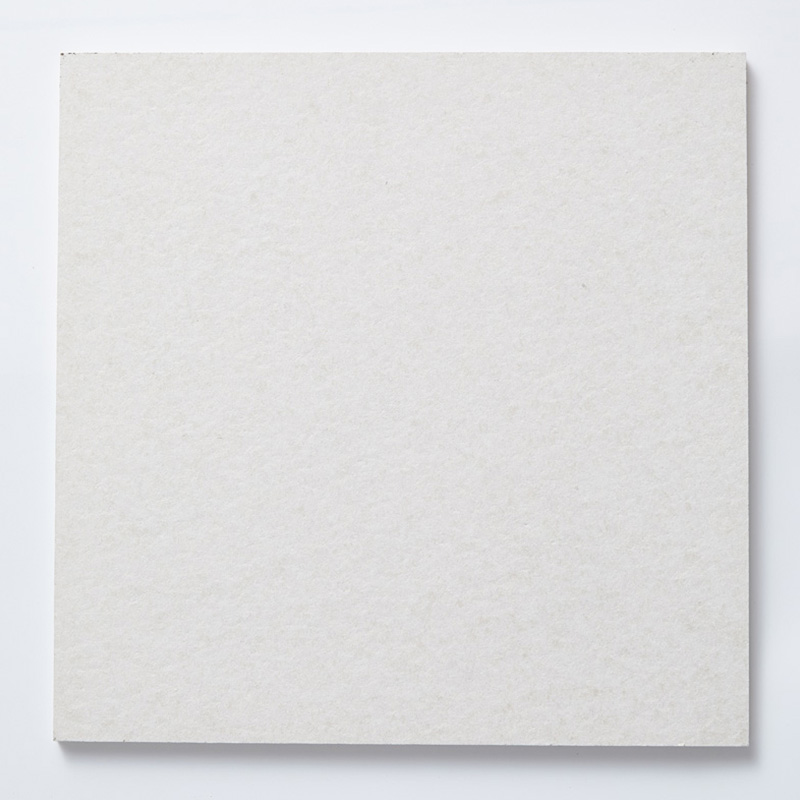

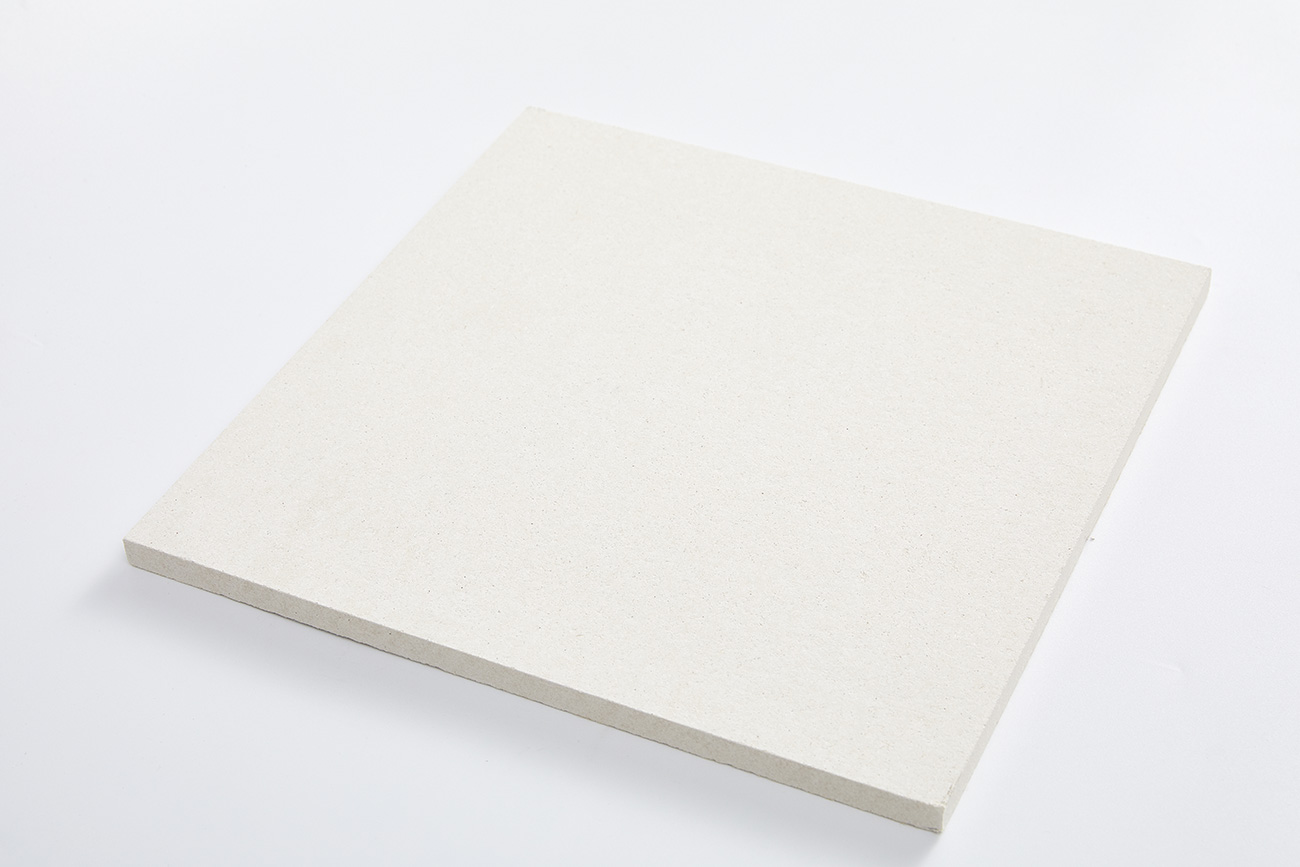

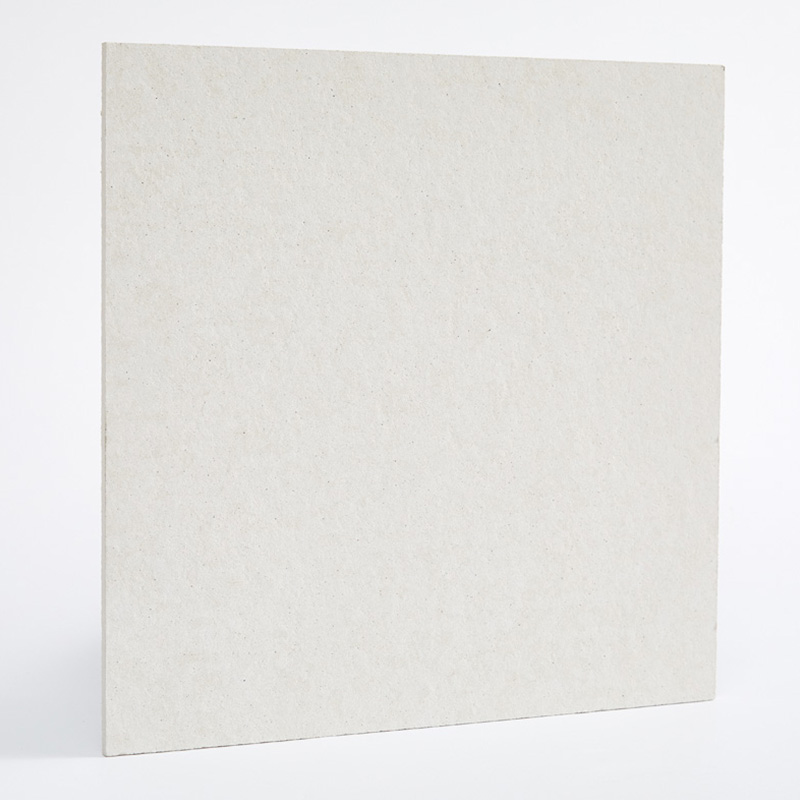

Protectpan is made of Fireproof material:pure quartz,quit lime,portland cement, cellulose,mineral additives. Its fireproof temperature is up to 1200℃. With our system, it can easily pass 4 hours fire rating time.
100% Non Asbestos
Low density makes it lighter and easier to install.
Low thermal conductivity: Saving expense of air-conditioner and warm gas.
INQUIRYSpecification
|
Specification |
|
|
|
Thickness |
Width |
Length |
|
9,12,15,18,20,24mm |
1220mm |
2440,3050mm |
|
REMARK: We can also supply other specification as the client’s specially requirement |
||
Physical properties
|
The following data are the average tested figures during manufacturing |
|||||
|
Item |
Index |
Unit |
|||
|
Density |
≤0.95 |
g/cm3 |
|||
|
Thermal Conductivity |
≤0.20 |
W/(m·k) |
|||
|
Water Contain |
≤10 |
% |
|||
|
Moisture Movement |
≤0.25 |
% |
|||
|
Non-combustibility |
ASTM E136-19a, BS 476 part 4,6 and 7 |
/ |
|||
|
Bending Strength |
Oven dry |
Cross |
≥7.0 |
Mpa |
|
|
Parallel |
≥5.0 |
Mpa |
|||
Applications:

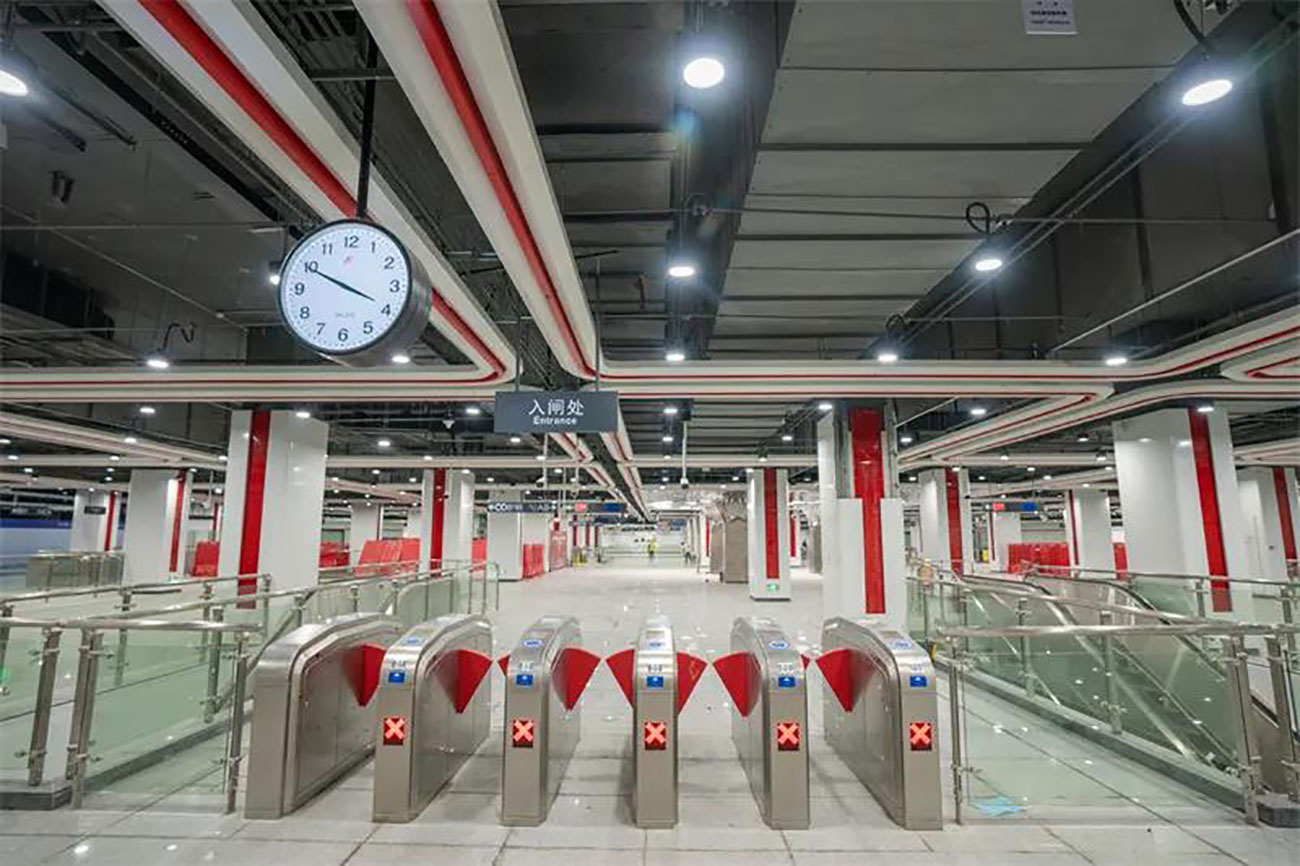

The purpose of Protectpan is for higher performance of fire rating application for glass curtain wall fire protection:
building structure protection

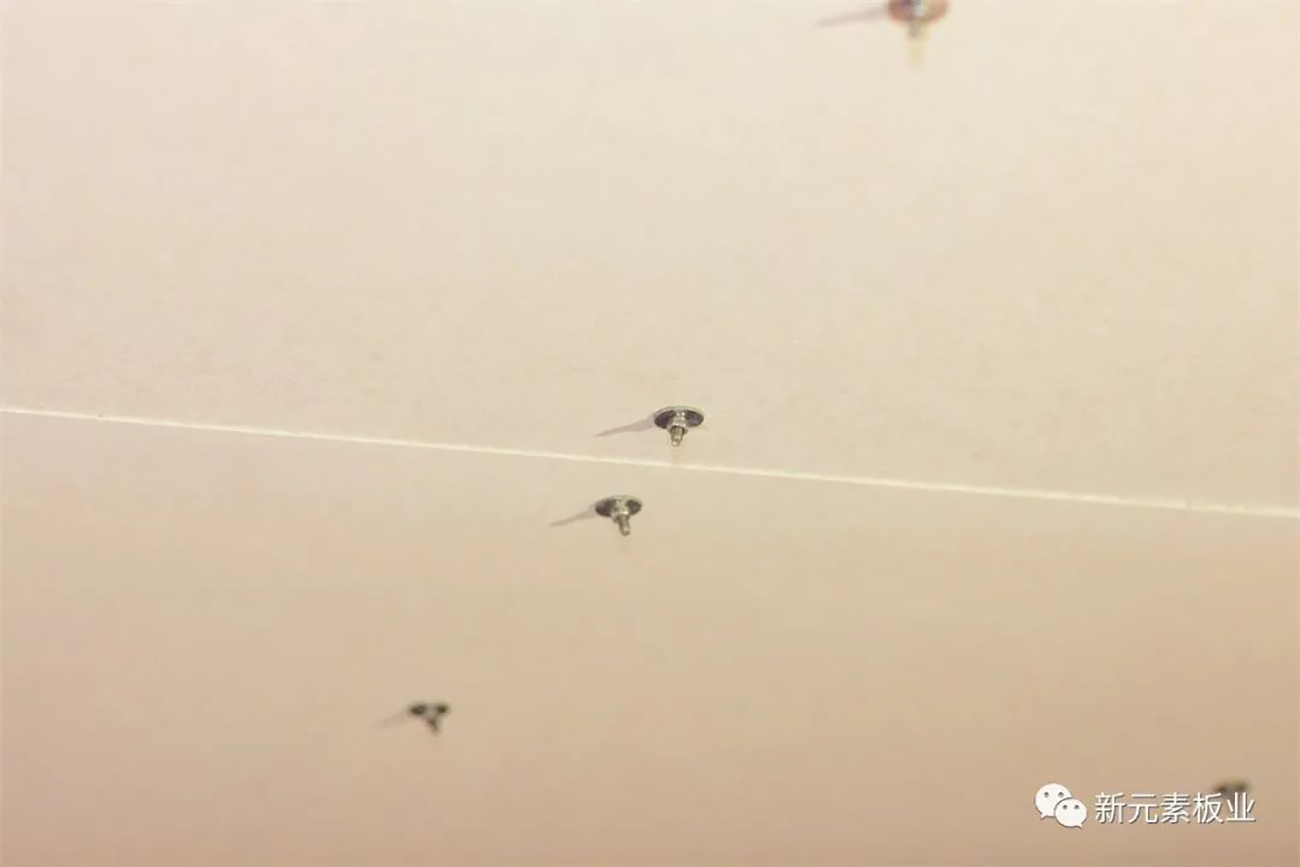

indoor partition and ceiling

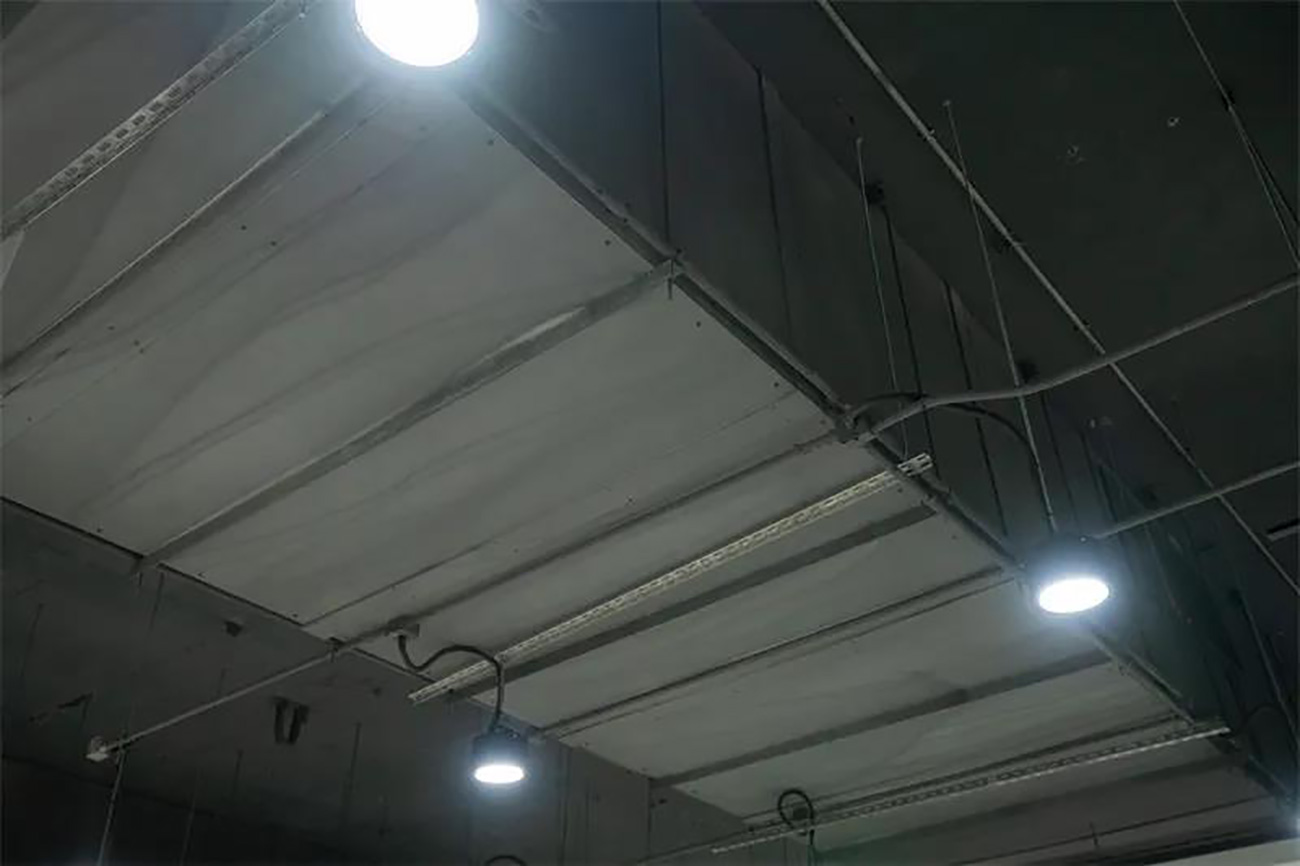

ventilation ducting
smoke ducting
smoke curtain

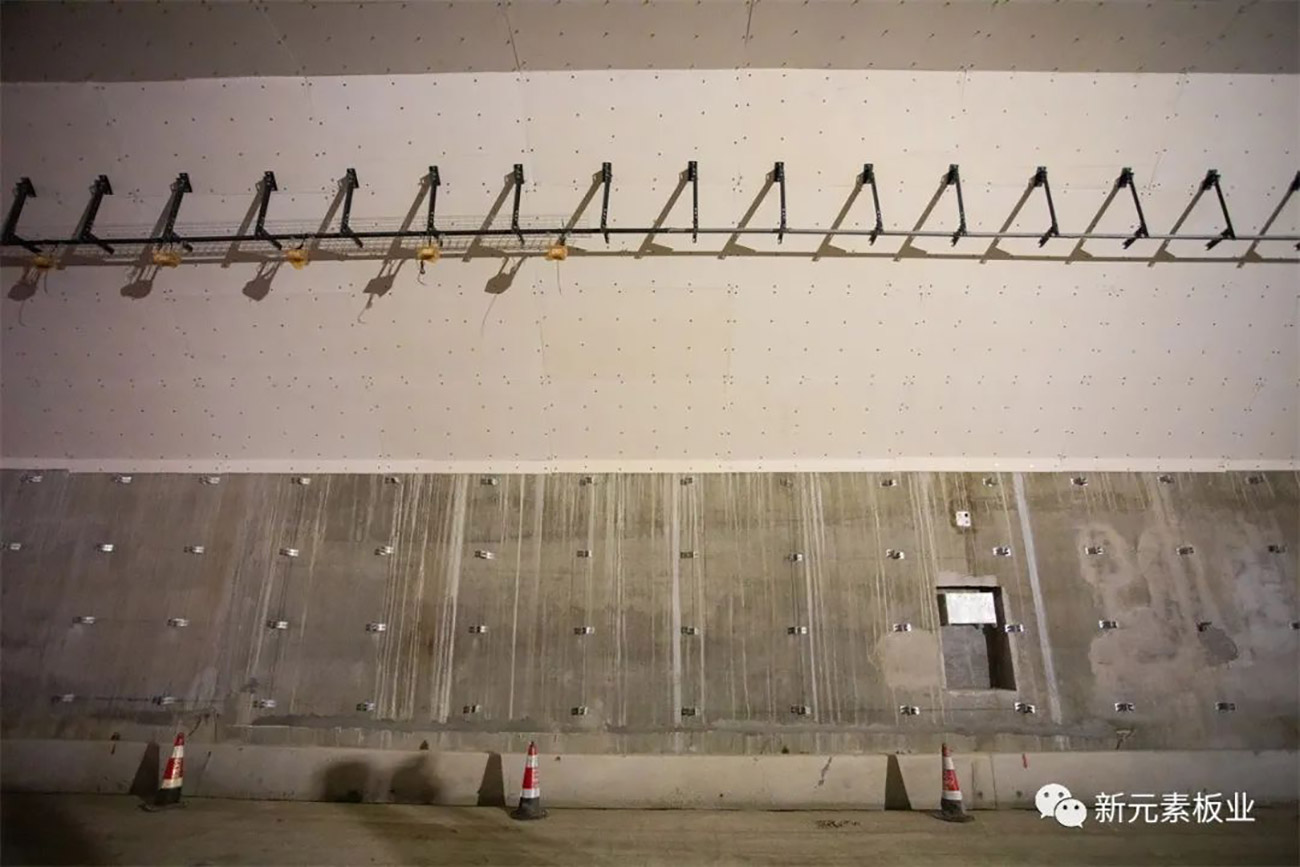

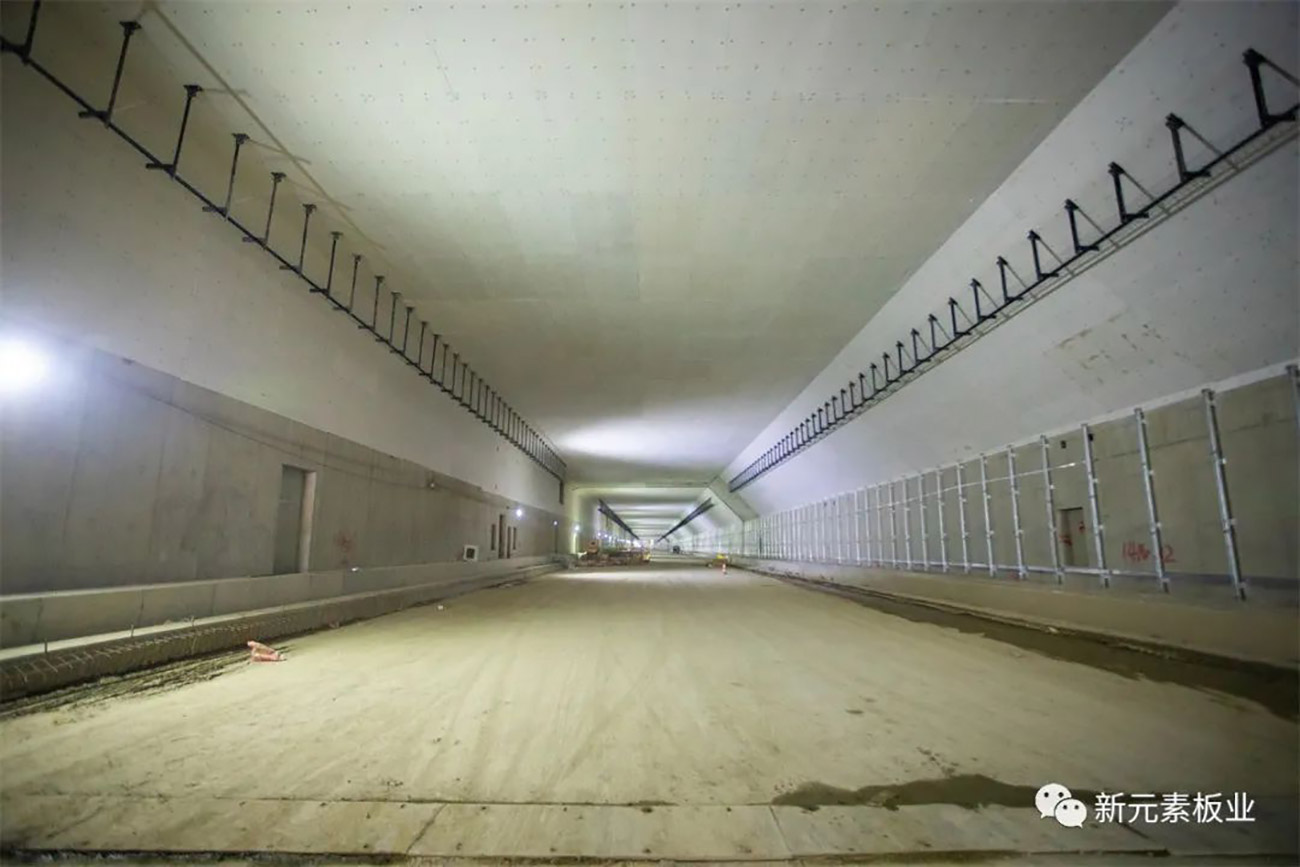

Fire protection for tunnel
Packing Detail:
Wooden Pallet
Waterproof Plastic Bag + Packing tape

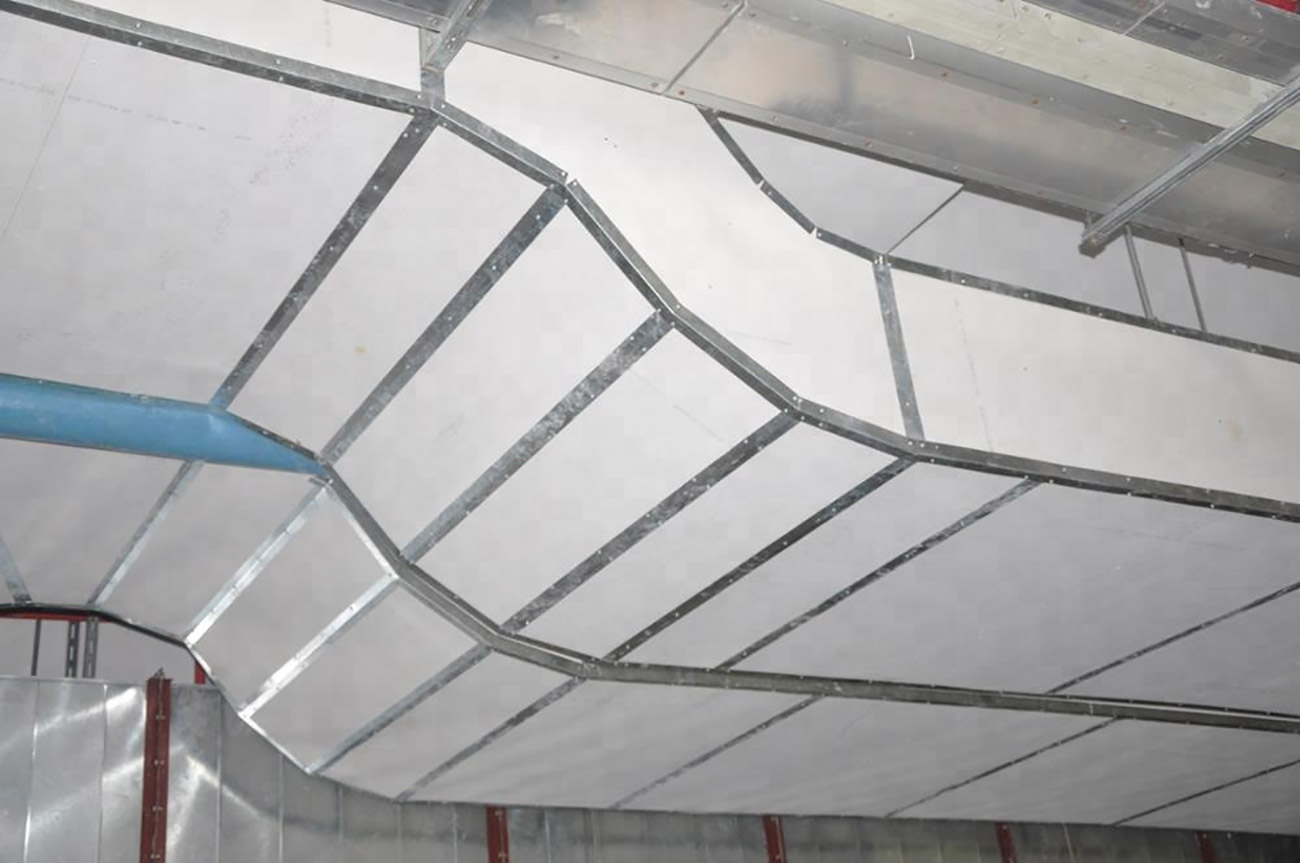

This fire resistant calcium silicate board is excellent for fireproof ductwork, can resist temperatures up to 1200℃, and can easily pass 4 hours of fire rating time.
Our Protectpan has passed ASTM test，meets the standard of GB, BS and ISO-1182.
