Tiles Backer Fiber Cement Board

Backerpan

Model: Backerpan

Fiber cement board is a good, reliable tile backer board that works well on walls. This backerpan backer board can stand up to moisture. With its unique fiber cement board texture, the embossing surface can increase the bonding capacity, which can be used where a flat surface is required for tiles, wallpaper or paint.

INQUIRY

Specification

Length

 Width

Thickness

   Weight for reference kg/m2

2440

1220

9

12

12

16



Tolerance in dimension

Item



 Requirement

Length

≤1220

±3

1220-2440

±4

Width

≤1220

±3

>1220

±4

Thickness

9,12

±0.6



Safety Capability

Item

Index

Instruction

Asbestos Including

100% Asbestos Free

Safe for Application

Redioactive

<1.0IRa

Safe for Application

<1.0Ir

Safe for Application

Non-combustibility

A1

The highest



Physical properties

Item

 Index

Unit

Density

1.34

g/cm3

Bending Strength

13.1

MPa

Water Contain

7.98

%

Moisture Movement

0.16

%

Thermal Conductivity

0.196

w/(m·k)

Elasticity Modulus

5241

MPa

Please contact our technical department if you need more technical index


Applications:

Kitchen, laundry room, bathroom and the places need tiling.


Packing Detail:

Wooden Pallet

Waterproof Plastic Bag + Packing tape

The unique fiber cement board texture of embossing surface can increase the bonding capacity which can be used in where flat surface is required for tiles, wallpaper or paint.

The backerpan backer board is a superb alternative to offer an incredibly resistant lightweight solution with simple, fast and clean installation.

Backerpan backer boardfiber cement board texture

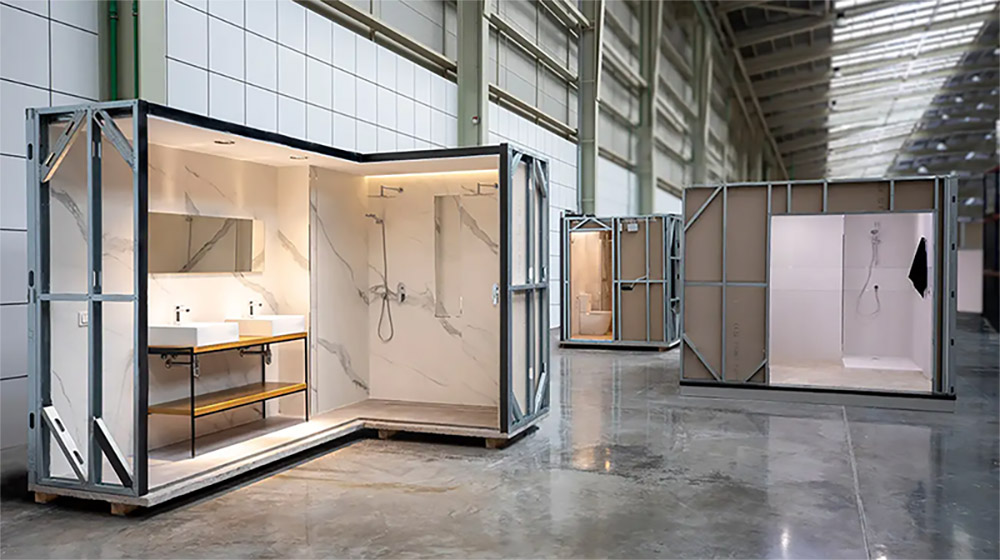

The following pictures are conceptual drawings for references



China waterproof calcium silicate boardfiber cement board for bathroom

fiber cement board for bathroom

×
